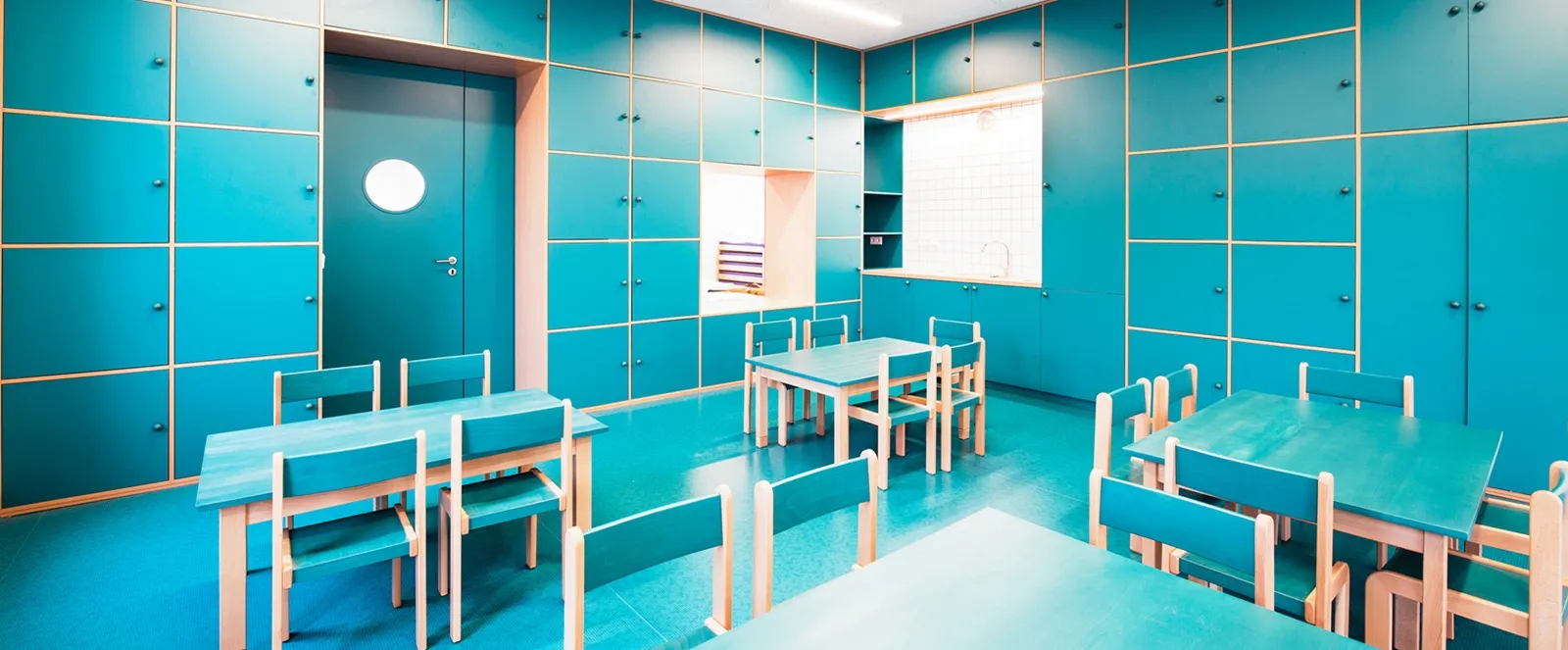

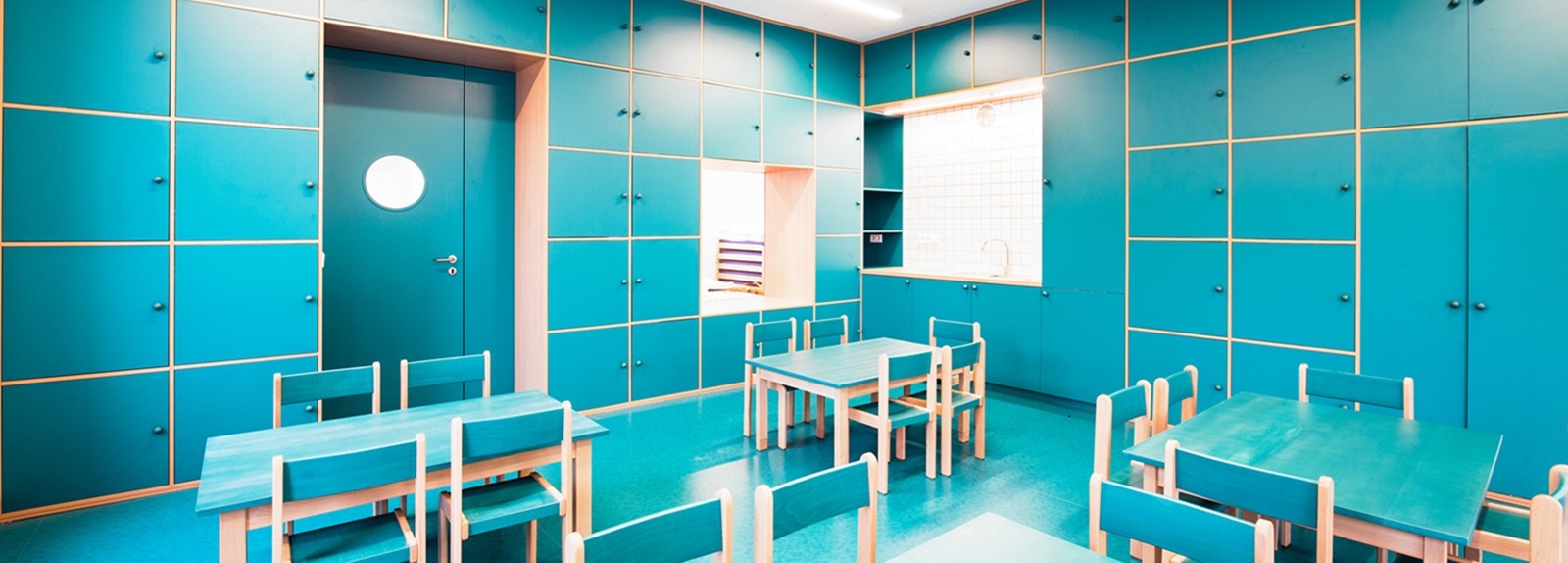

LHSH's fire rated door with vision panel is a steel composite fire door fitted with certified fire-resistant glazing, giving occupants and staff clear sightlines through doorways and corridors without compromising fire separation performance. Unlike a solid fire door, this vision panel fire door design is tested as a complete assembly - door leaf, frame, and glazing evaluated together - so the fire rating printed on the nameplate reflects the actual installed unit, not just the door slab on its own. This fire rated vision door is available in EI30, EI60, EI90, and EI120 configurations, with glazing size and type selected to match the required fire duration.
Why This Matters for Vision Panel Selection
Not every glass option can go into every fire rated door with vision panel - the glazing type has to match the fire rating, not just the door itself:
● Fire-protective glazing (wired glass, ceramic glazing) is suitable for shorter-duration doors and is generally limited to smaller vision panel sizes, since it blocks flame and smoke but not radiant heat.
● Fire-resistive glazing is required once vision panel size increases or fire duration extends beyond the short-rating range, since it blocks radiant heat transfer as well as flame and smoke.
● LHSH configures glazing type and vision panel size together for each project, so the finished glazed fire rated door meets its stated EI rating as a tested assembly rather than a field-modified guess.
Why Choose Our Fire Rated Door with Vision Panel？
● Full System Certification: Door, frame, and glazing tested and certified as one integrated assembly, not as separate components rated in isolation.
● BIM Objects Available: Pre-configured Revit families for seamless integration into architectural drawings and specification packages.
● Custom Glazing Solutions: Round, rectangular, or multi-panel vision panel layouts, sized to project and code requirements.
● Full Fire Rating Range: EI30 / EI60 / EI90 / EI120 options across a single vision panel fire door platform, so one supplier can cover multiple fire-rated zones in the same building.
Applications
● Commercial: Offices, malls, hotels - stairwells and corridors where visibility supports safe wayfinding during an emergency.
● Industrial: Factories and warehouses, separating fire compartments while keeping sightlines for daily operational safety.
● Public Buildings: Hospitals, schools, and airports, where a glazed fire rated door supports emergency exit visibility.
● Residential: Apartment blocks and garages, connecting doors between shared and private zones.
● Special: Server rooms and labs, high-risk areas where staff need to see into a space before entering.
Why Choose Our Vision Panel Fire Doors?
✅ Full System Certification: Door + frame + glazing tested as integrated unit
✅ BIM Objects Available: Pre-configured Revit families for seamless integration
✅ Custom Glazing Solutions: Round, rectangular, or multi-panel designs
✅ Precision-engineered manufacturing with full traceability from raw material sourcing to final inspection.
✅ Certification documentation, CAD drawings, and project-specific quotes provided directly - no back-and-forth through a distributor.
✅ 24/7/365 real-time support for specification questions and after-sales service.
Contact us for project-specific quotes, CAD drawings, and certification documentation.
