    Fire Safety Glazing Door with Glass

    Fire Rated Doors Core Functions:

    Compartmentalization: Confine fire/smoke within origin zones (60–240 mins rating).

    Egress Protection: Maintain exit paths clear of smoke/toxic gases.

    Structural Integrity: Prevent collapse of critical escape routes.

    Thermal Insulation: Limit radiant heat transfer to adjacent areas.

    Pressurization Support: Integrate with mechanical smoke control systems.

    Inquiry now + Next Product +
    Fire Safety Glazing Door with Glass

    Fire Safety Glazing Door with Glass

    Characteristics

    STEEL.TIMBER.GLASS-COMPOSITE

    THICKNESS | 45MM–54MM (STANDARD)

    MAX UP TO 3M (HEIGHT) × 1.5M (WIDTH)

    FIRE-RATED HINGES, CLOSERS, PANIC BARS

    FIRE RATING EI30 / EI60 / EI90 / EI120 (MINS)

    LIFE SAFETY.DURABILITY.THERMAL INSULATION

    PROTECTS ESCAPE ROUTES

    SOLID-CORE CONSTRUCTION

    CORROSION-RESISTANT HARDWARE

    BLOCKS FIRE/SMOKE FOR 20-120+ MINUTES

    COLORS & FINISHES

    WOODGRAIN FIISHES OPTIONAL

    STEEL POWDER-COATED (RAL COLORS)

    GLASS CERAMIC FIRE-RESISTANT GLAZING

    TIMBER,NATURAL VARNISH, PAINT OR LAMINATE


    Certification Standard

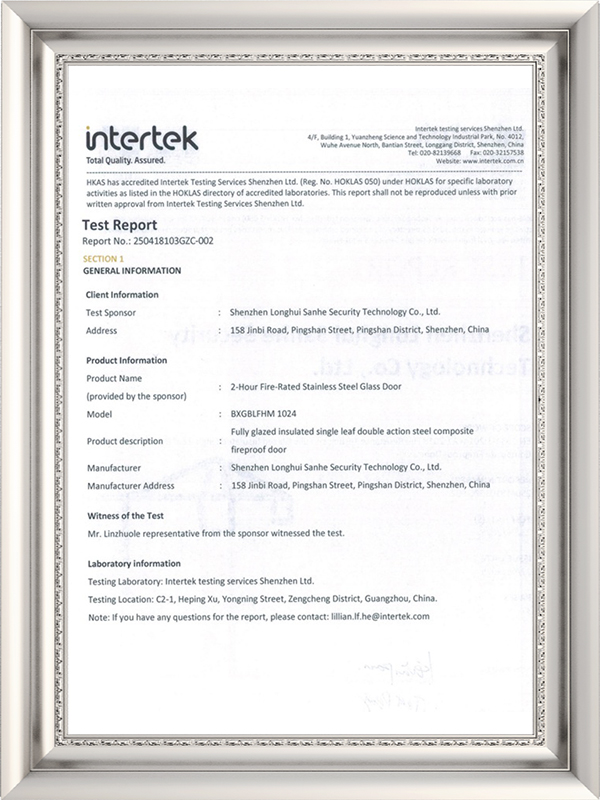

    Intertek has conducted an evaluation for Shenzhen Longhui Sanhe Security Technology Co., Ltd. to determine the fire resistance performance on one fully glazed insulated single leaf double action steel composite fireproof door, model of BXGBLFHM 1024. The doorset is required to provide a fire separating function and was therefore tested in accordance with EN 1634-1:2014+A1:2018 'Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware.

    Technical data

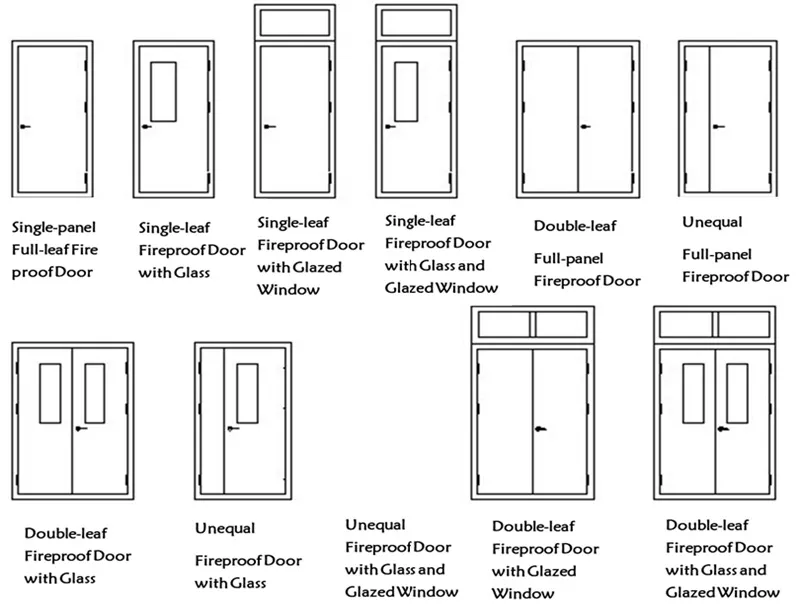

    INSTALLATION METHODSingle/Double/Unequal Door
    		FIRE RESISTANCE   RATING
    MATERIALGalvanized SteelEN   Standards
    FILLING MATERIALPerlite,   honeycomb paper, aluminum silicate cotton etc.EI30/EI60/EI90/EI120‌
    FIRE RATED TIME20 mins up to   180mins. (Integrity + Insulation for 30/60/90/120   minutes)
    SIZEUp to 9'-   5.7" x 10'-2.2" ft (height) | 2888 x 3104mm (height)BS   Standards
    DOOR LEAF SHEET22 Ga .- 18 Ga.   (/1.0/1.2 mm) galvanized steel sheetFD30/FD60/FD90/FD120‌   (Fire duration rating)
    DOOR FRAME SHEET16 Ga .- 14 Ga.   (1.5mm-2.0mm) galvanized steel sheet
    SURFACE FINISHDoor leaf and   frame powder coated finish.GB   Standards
    OPENING DIRECTIONSwing Inward /   OutwardClass   A fireproof door
    COLORRAL color   system, could be customized as well.Fire   resistance insulation > =   1.5hours
    ACCESSORIESLock, handle,   hinges,door closer,panic bar and other as requested.Fire   resistance integrity > =   1.5hours
    VISION PANELWith or without   as requested. (Fire proof glass)Class   B fireproof door
    LITE FRAMEFrame type can   be customizedFire   resistance insulation > =   1.0hours
    LOUVERWith or without   as requested.Fire   resistance integrity > =   1.0hours
    FEATUREFire proof and   thermal insulation.Class   C fireproof door
    APPLICATIONbuilding   project, company, home, office, hotel, church, Just Anywhere you want!Fire   resistance insulation > =0.5   hours
    PACKAGEInside: PE paper   | Outside: double layers carton box and wooden pallets.Fire   resistance integrity > =0.5hours

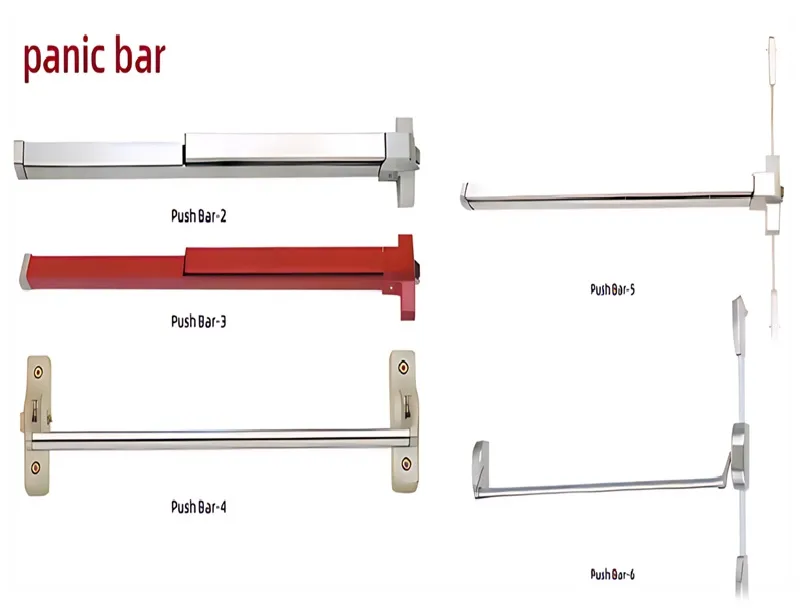

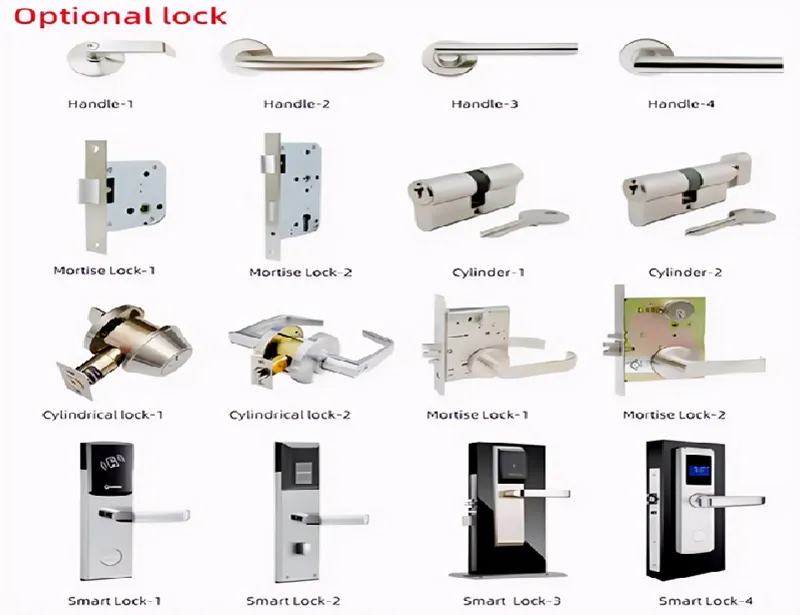

    Hardware

    FIRE DOOR HARDWARE IS AN INTEGRATED LIFE-SAFETY SYSTEM.

    COMPONENTS WORK TOGETHER TO ENSURE THE DOOR CLOSES RELIABLY,

    LATCHES SECURELY, AND SEALS EFFECTIVELY AGAINST SMOKE AND FLAMES DURING A FIRE.


    FIRE DOOR HARDWARE IS AN INTEGRATED LIFE-SAFETY SYSTEM.

    COMPONENTS WORK TOGETHER TO ENSURE THE DOOR CLOSES RELIABLY,

    LATCHES SECURELY, AND SEALS EFFECTIVELY AGAINST SMOKE AND FLAMES DURING A FIRE.


    Protect what matters most, designed to resist flames, smoke, and extreme heat, LHSH doors provide critical escape time while enhancing your security and aesthetic appeal. 30/60/90/120-min fire resistance, certified to delay fire spread, keeping your safety. Choose from modern, classic, or minimalist designs (wood, steel, glass options) from green-certified materials to smart fire solutions, we innovate because lives depend on it. LHSH steel fire doors are precision-crafted to provide superior fire resistance, security, and durability. Tested to withstand temperatures exceeding 1000°C, these doors deliver certified protection when every second counts.
