    Fire Rated Door With Glass Window

    WHY GOVERNMENT FACILITIES REQUIRE SUPERIOR FIRE DOORS

    ① PROTECTING HUMAN DENSITY & FRAGILE HERITAGE

    SCHOOLS AND STADIUMS FACE EVACUATION CHAOS; MUSEUMS GUARD TEMPERATURE-SENSITIVE ARTIFACTS.

    LHSH DOORS DEMAND FIRE SOLUTIONS THAT SHOULDER DUAL MANDATES: PRESERVING IRREPLACEABLE ASSETS

    AND SAFEGUARDING CITIZENS. OUR CERTIFIED FIRE DOORS DELIVER UNCOMPROMISING DEFENSE WHERE FAILURE IS NOT AN OPTION.

    90-MINUTE TO 3-HOUR FIRE RATINGS (TESTED TO UL 10B/NFPA 252)

    LOW-EMISSION INTUMESCENT SEALS PREVENTING SMOKE DAMAGE

    ACOUSTIC-INTEGRATED DESIGNS MAINTAINING QUIET STUDY ZONES DURING DRILLS

    ② COMPLIANCE BEYOND MINIMUMS

    MEETING FEDERAL, STATE AND LOCAL CODES IS NON-NEGOTIABLE:

    ✓ IBC CHAPTER 4/7 FOR ASSEMBLY OCCUPANCIES

    ✓ NFPA 101 LIFE SAFETY CODE® SECTIONS 12-14 (MUSEUMS/LIBRARIES)

    ✓ ADA TITLE II COMPLIANT HARDWARE (LEVER HANDLES ≤5 LB. FORCE)

    ③ LONG-TERM VALUE FOR PUBLIC FUNDS

    REDUCE LIFECYCLE COSTS WITH:

    STAINLESS STEEL HINGES RESISTING SALT-AIR CORROSION IN COASTAL FACILITIES

    Inquiry now + Next Product +

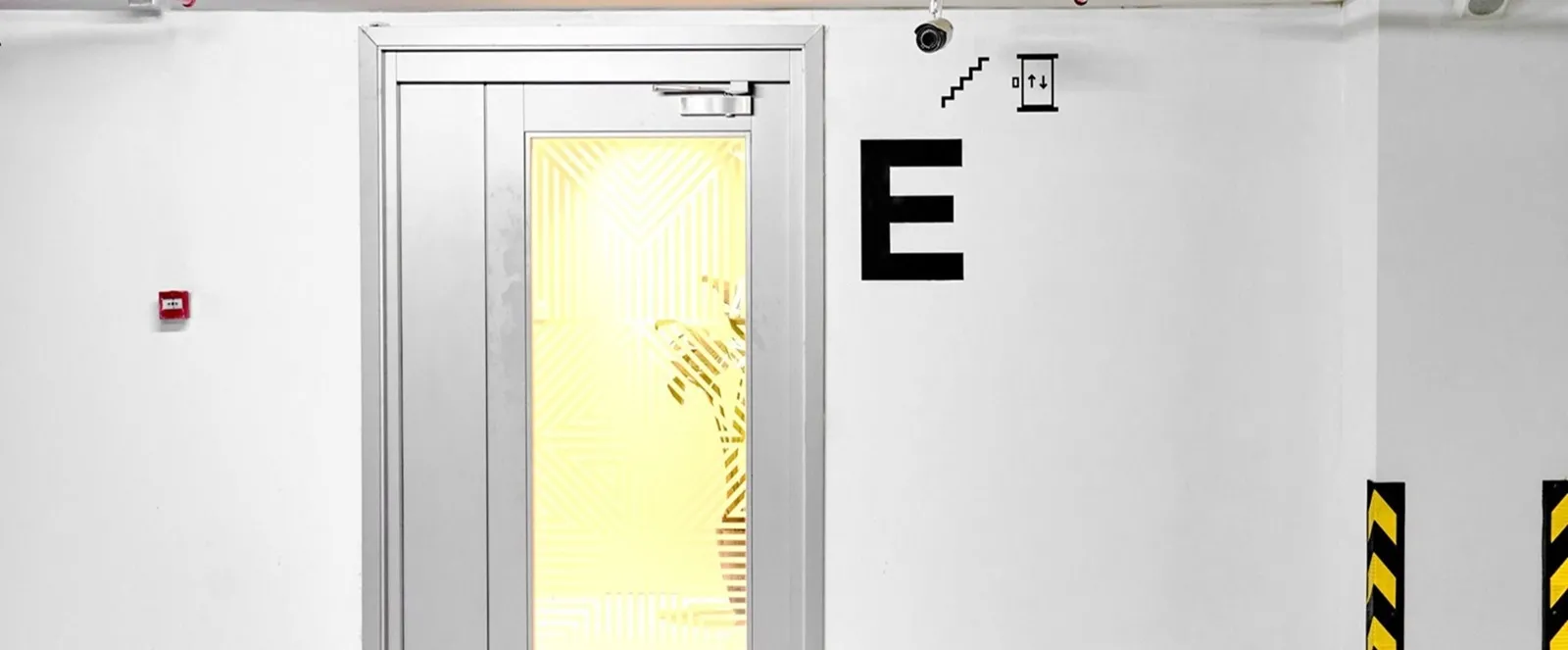

    Fire Rated Door With Glass Window

    Fire Rated Door With Glass Window

    Characteristics

    STEEL.TIMBER.GLASS-COMPOSITE

    THICKNESS | 45MM–54MM (STANDARD)

    MAX UP TO 3M (HEIGHT) × 1.5M (WIDTH)

    FIRE-RATED HINGES, CLOSERS, PANIC BARS

    FIRE RATING EI30 / EI60 / EI90 / EI120 (MINS)

    LIFE SAFETY.DURABILITY.THERMAL INSULATION

    PROTECTS ESCAPE ROUTES

    SOLID-CORE CONSTRUCTION

    CORROSION-RESISTANT HARDWARE

    BLOCKS FIRE/SMOKE FOR 20-120+ MINUTES


    COLORS & FINISHES

    WOODGRAIN FINISHES OPTIONAL

    STEEL POWDER-COATED (RAL COLORS)

    GLASS CERAMIC FIRE-RESISTANT GLAZING

    TIMBER,NATURAL VARNISH, PAINT OR LAMINATE

    Certification Standard

    Intertek has conducted an evaluation for Shenzhen Longhui Sanhe Security Technology Co., Ltd. to determine the fire resistance performance on one fully glazed insulated single leaf double action steel composite fireproof door, model of BXGBLFHM 1024. The doorset is required to provide a fire separating function and was therefore tested in accordance with EN 1634-1:2014+A1:2018 'Fire resistance and smoke control tests for door, shutter and openable window assemblies and elements of building hardware.

    Technical data

    INSTALLATION METHODSingle/Double/Unequal Door
    		FIRE RESISTANCE   RATING
    MATERIALGalvanized SteelEN   Standards
    FILLING MATERIALPerlite,   honeycomb paper, aluminum silicate cotton etc.EI30/EI60/EI90/EI120‌
    FIRE RATED TIME20 mins up to   180mins. (Integrity + Insulation for 30/60/90/120   minutes)
    SIZEUp to 9'-   5.7" x 10'-2.2" ft (height) | 2888 x 3104mm (height)BS   Standards
    DOOR LEAF SHEET22 Ga .- 18 Ga.   (/1.0/1.2 mm) galvanized steel sheetFD30/FD60/FD90/FD120‌
    DOOR FRAME SHEET16 Ga .- 14 Ga.   (1.5mm-2.0mm) galvanized steel sheet  (Fire duration rating)
    SURFACE FINISHDoor leaf and   frame powder coated finish.GB   Standards
    OPENING DIRECTIONSwing Inward /   OutwardClass   A fireproof door
    COLORRAL color   system, could be customized as well.Fire   resistance insulation > =   1.5hours
    ACCESSORIESLock, handle,   hinges,door closer,panic bar and other as requested.Fire   resistance integrity > =   1.5hours
    VISION PANELWith or without   as requested. (Fire proof glass)Class   B fireproof door
    LITE FRAMEFrame type can   be customizedFire   resistance insulation > =   1.0hours
    LOUVERWith or without   as requested.Fire   resistance integrity > =   1.0hours
    FEATUREFire proof and   thermal insulation.Class   C fireproof door
    APPLICATIONbuilding   project, company, home, office, hotel, church, Just Anywhere you want!Fire   resistance insulation > =0.5   hours
    PACKAGEInside: PE paper   | Outside: double layers carton box and wooden pallets.Fire   resistance integrity > =0.5hours


    Common   Sizes of Fireproof Doors
    Class A/B/COne-leaf800*2400


    900*2400900*2500

    1000*24001000*23001000*2500
    1100*21001100*22001100*23001100*2400
    1200*21001200*22001200*23001200*2400
    1300*22001300   2300

    1400*23001400*2400

    1500*21001500*22001500*23001500*2400
    Double-leaf1200*2500


    1500*2400


    1500*25001500*27001500*2800
    1600*2400


    1700*2600


    1800*24001800*25001800*26001800*2700
    1900*24001900*25001900*26001900*2700
    1900*28002000*2500

    2100*24002100*25002100*27002100*3000
    2300*2300


    2200*22002200*2400

    2400*24002400*25002400*27002400*3000
    2500*2200


    2700*24002700*27002700*3000
    3000*30003100*3100

    Unequal1200*24001200*2500

    1500*23001500*2400

    Class A/B/COne-leaf900*2400900*2500

    1000*24001000*2500

    1100*22001100*23001100*24001100*2500
    1200*21001200*22001200*2300

    1200*2400



    Hardware

    FIRE DOOR HARDWARE IS AN INTEGRATED LIFE-SAFETY SYSTEM.

    COMPONENTS WORK TOGETHER TO ENSURE THE DOOR CLOSES RELIABLY,

    LATCHES SECURELY, AND SEALS EFFECTIVELY AGAINST SMOKE AND FLAMES DURING A FIRE.

    FIRE DOOR HARDWARE IS AN INTEGRATED LIFE-SAFETY SYSTEM.

    COMPONENTS WORK TOGETHER TO ENSURE THE DOOR CLOSES RELIABLY,

    LATCHES SECURELY, AND SEALS EFFECTIVELY AGAINST SMOKE AND FLAMES DURING A FIRE.

    Protect what matters most, designed to resist flames, smoke, and extreme heat, LHSH doors provide critical escape time while enhancing your security and aesthetic appeal. 30/60/90/120-min fire resistance, certified to delay fire spread, keeping your safety. Choose from modern, classic, or minimalist designs (wood, steel, glass options) from green-certified materials to smart fire solutions, we innovate because lives depend on it. LHSH steel fire doors are precision-crafted to provide superior fire resistance, security, and durability. Tested to withstand temperatures exceeding 1000°C, these doors deliver certified protection when every second counts.
