Home - Products - Minimalist Interior Doors - Aluminum-Wood Door - Aluminum And Wood Secret Door

Aluminum And Wood Secret Door

① TARGET AUDIENCE

Renovators Seeking Premium, Modern Solutions, Architects, Interior Designers,

High-End Residential Builders,Luxury Homeowners, Boutique Commercial Projects (Hotels, Offices)

② CORE ADVANTAGES

Structural Integrity, aluminum frame ensures dimensional stability (RH 30–70%).

Seamless Aesthetics, hidden hardware + flush edges = minimalist visual continuity.

Acoustic Performance, integrated seals achieve up to Rw 35 dB sound reduction.

Durability, aluminum resists corrosion; wood surfaces protected by embedded frame.

Precision Engineering, CNC machining ensures consistent reveals (±0.5mm tolerance).

Inquiry now + Next Product +

Aluminum And Wood Secret Door

Characteristics

FLUSH EDGE CONSTRUCTION

THE EXTERIOR ALUMINUM LAYER OFFERS EXCELLENT MOISTURE AND CORROSION RESISTANCE, ALLOWING USE IN BATHROOMS AND OTHER HUMID AREAS. MANY ALUMINUM-WOOD HIDDEN DOORS MEET STRINGENT FIRE RESISTANCE STANDARDS (E.G., NATIONAL CLASS B1 ), ADDING A LAYER OF SAFETY.

ULTRA-SLIM

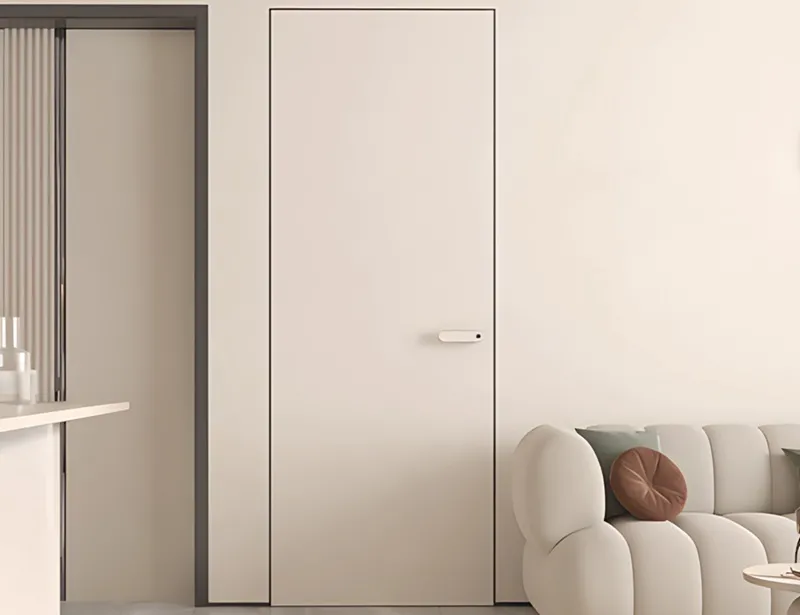

FLUSH EDGE CONSTRUCTION, ULTRA-SLIM, CONSISTENT ALUMINUM EDGE BANDING (0.8–1.5MM) CREATES A SEAMLESS, MONOLITHIC APPEARANCE. NO PROTRUDING EDGES; CLEAN LINES ALIGN PERFECTLY WITH WALLS/JAMBS.

MONOLITHIC APPEARANCE

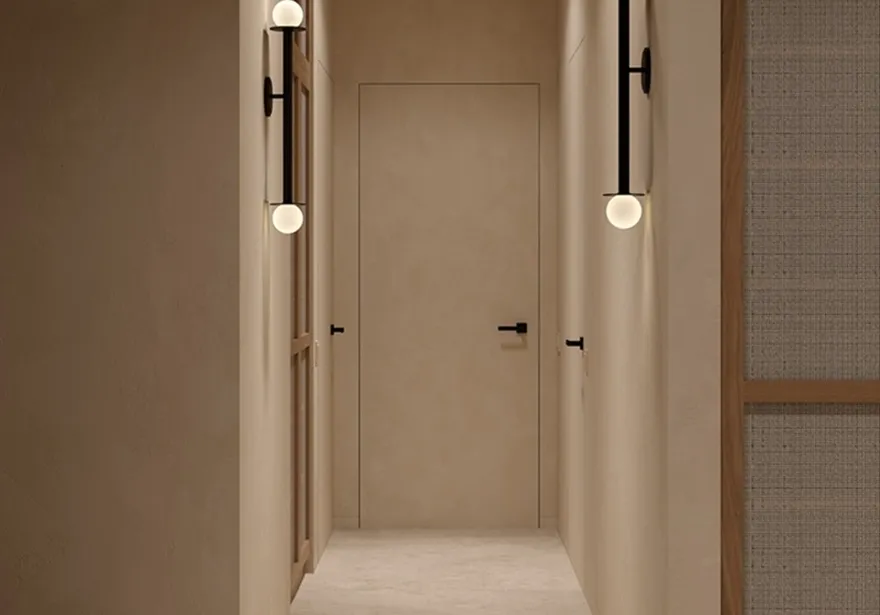

THE PARAMOUNT FEATURE OF HIDDEN DOORS IS THEIR ABILITY TO BLEND SEAMLESSLY INTO WALLS, CABINETS OR OTHER ARCHITECTURAL ELEMENTS, MAINTAINING A CLEAN, UNCLUTTERED AND MODERN AESTHETIC.

BLEND SEAMLESSLY INTO WALLS

THEY OFTEN EMPLOY MINIMALIST FRAMING AND CAN BE FINISHED TO MATCH SURROUNDING SURFACES EXACTLY. ALLOWS FOR PRECISE ALIGNMENT AFTER INSTALLATION. ENSURES SMOOTH, SILENT OPERATION AND ENHANCED SECURITY.

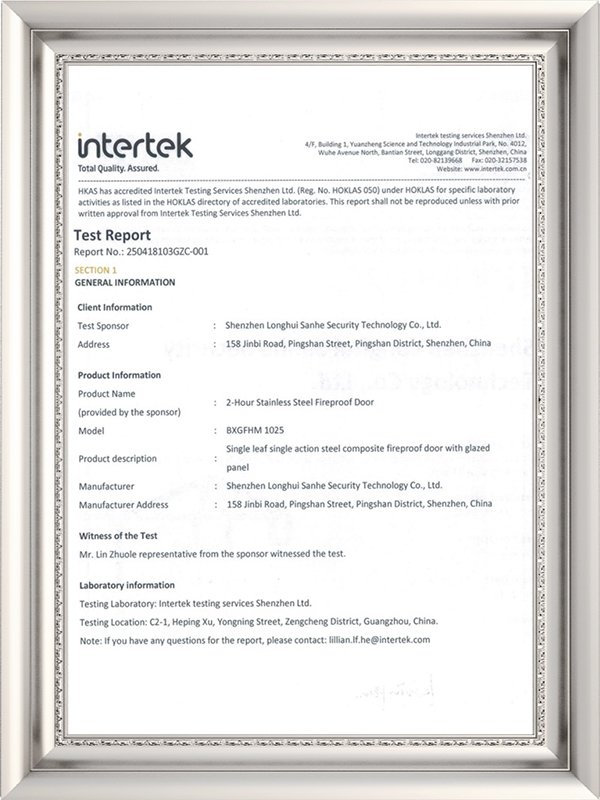

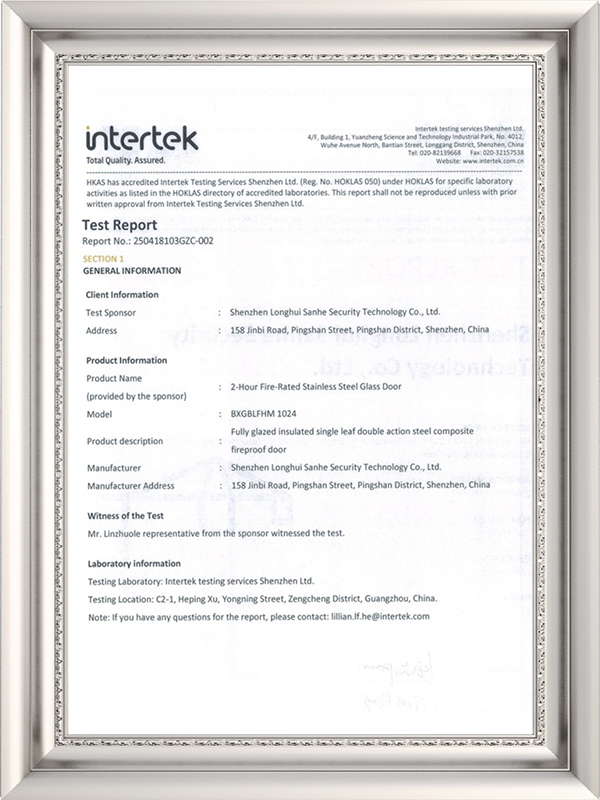

Certification Standard

① Fire Rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2

② Rw (C; Ctr) 30-42 dB. Performance depends on core density, seals, and installation, tested per EN ISO 10140

③ U-value: ~15 - 2.5 W/m²K. Primarily for interior climate separation.

④ Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure.

⑤ Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019).

Technical data

① Core Construction & Materials		② Hardware System
Opening Styles	Single Action Door (Side-Hung) Double Action Door (Double-Swing)	Hinge Type	Invisible / Concealed Hinges, 3D Adjustable (vertical, horizontal, and pressure adjustment).
Opening Styles	Sliding Door (Pocket / Bypass) Pivot Door (Center-Hung) Folding Door (Bi-Fold / Multi-Fold)	Hinge Type
Standard Door Leaf Height	2000, 2100, 2200, 2300 \| 78.7″, 82.7″, 86.6″, 90.6″	Load Capacity	Hinges must support the full door leaf weight. Typically rated for doors from 60kg to 120kg
Standard Door Leaf Width	600, 700, 800, 900 \| 23.6″, 27.6″, 31.5″, 35.4″	Cycle Testing	High-quality hinges are tested to 100,000+ open/close cycles (Grade 1 per EN 1935).
Common Door Leaf Thickness	35, 40, 45, 50 \| 1.4″, 1.6″, 1.8″, 2.0″	Closing Mechanism	Integrated Hydraulic Closer (hidden in the door leaf or threshold). Adjustable closing speed and latching force.
Core Material	Aluminum Alloy Frame (2.0mm thickened aviation aluminum)	Latching System	Push-to-Open Latch or Magnetic Touch Latch.
Door Thickness	Typically 60mm or customized based on design and structural requirements.	For locking	For locking: Integrated, concealed mechanical or electronic lock.
Frame Material	High-Grade Aluminum Alloy (6063-T5)	③ Performance & Testing Standards
Wall thickness	typically 1.8mm - 2.5mm	Fire Resistance (Option)	Can be rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2
Core Infill Material	Option A (Premium):Solid Wood Slats (e.g., Nordic Spruce, Fir) or Laminated Veneer Lumber (LVL).	Sound Insulation	30-42 dB. Performance depends on core density, seals, and installation. Tested per EN ISO 10140
	Option B (Lightweight): Aluminum Honeycomb Core.
	Option C (Composite): Particle Board (MDF/HDF) with moisture resistance.
Interior Surface	Real Wood Veneer (Oak, Walnut, Ash, Teak, etc.) or High-Pressure Laminate (HPL). Thickness: 0.6mm - 3.0mm.	Thermal Insulation	U-value: ~1.5 - 2.5 W/m²K. Primarily for interior climate separation.
Exterior Surface	Powder-coated aluminum frame, finished to match the interior veneer or wall color.	Durability	Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure.
Edge Banding	ABS or aluminum edge banding for durability and a clean finish.	Stability & Deflection	Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019).

Doors Overviews

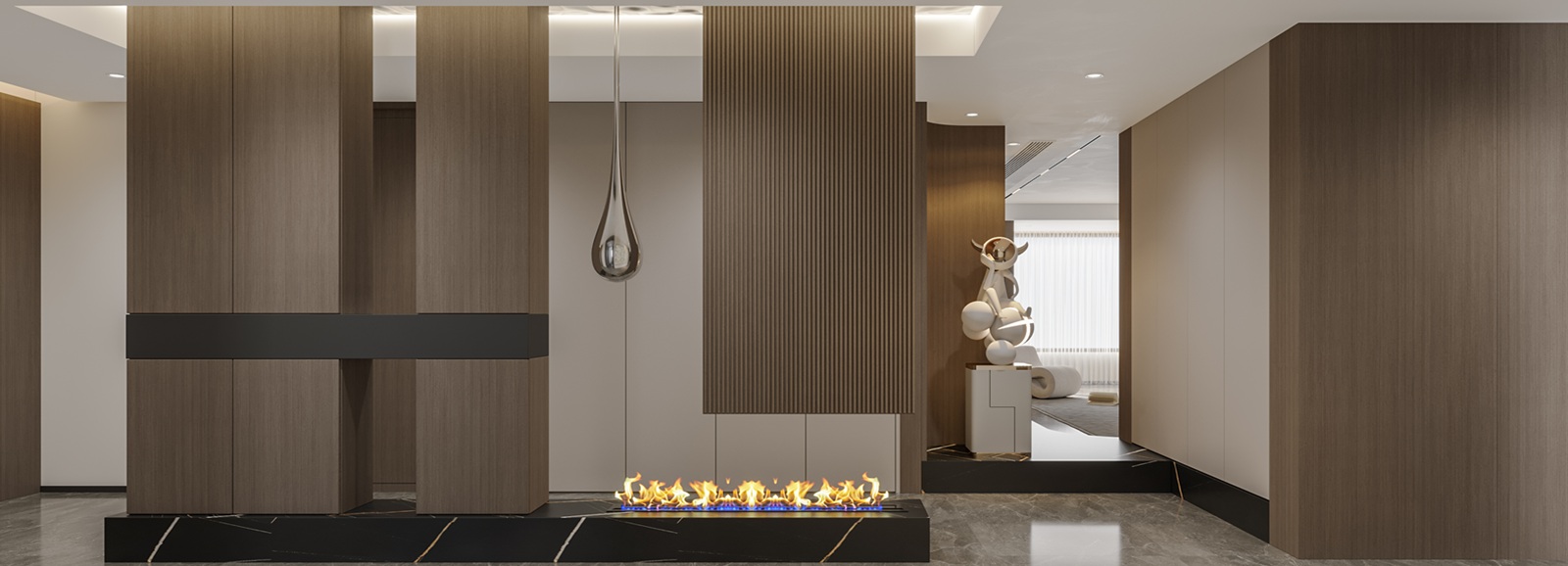

the paramount feature of hidden doors is their ability to blend seamlessly into walls, cabinets or other architectural elements, maintaining a clean, uncluttered and modern aesthetic. they often employ minimalist framing and can be finished to match surrounding surfaces exactly.

achieving visual continuity, capable of full-height designs, enhancing the sense of space and grandeur. The aluminum alloy framework and reinforcement (e.g., aluminum dragon bones/keels) provide exceptional impact resistance and prevent deformation, often boasting a lifespan for years.

Thanks to the stability of aluminum and properly treated wood, these doors exhibit superior resistance to warping, cracking, and shrinking across diverse climates, performing well in both humid southern and dry northern regions.

flush edge construction, ultra-slim, consistent aluminum edge banding (0.8–1.5mm) creates a seamless, monolithic appearance. no protruding edges; clean lines align perfectly with walls/jambs.
