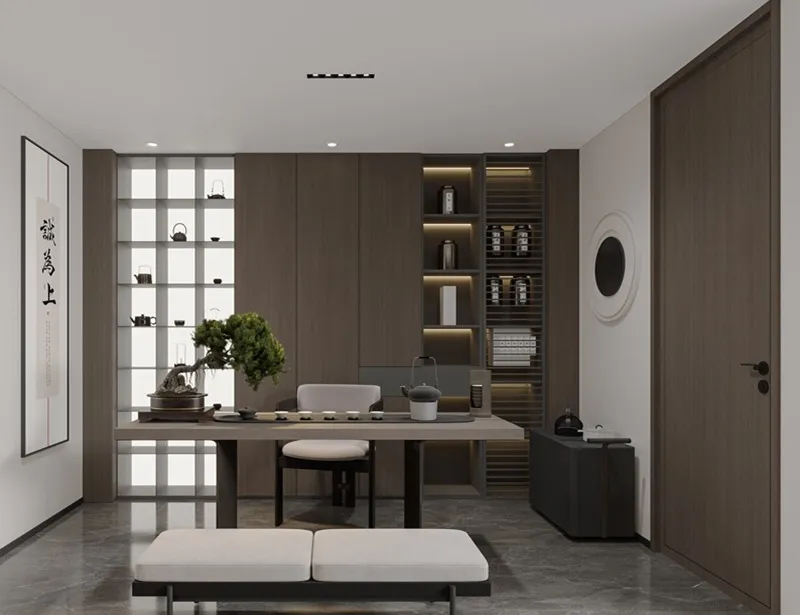

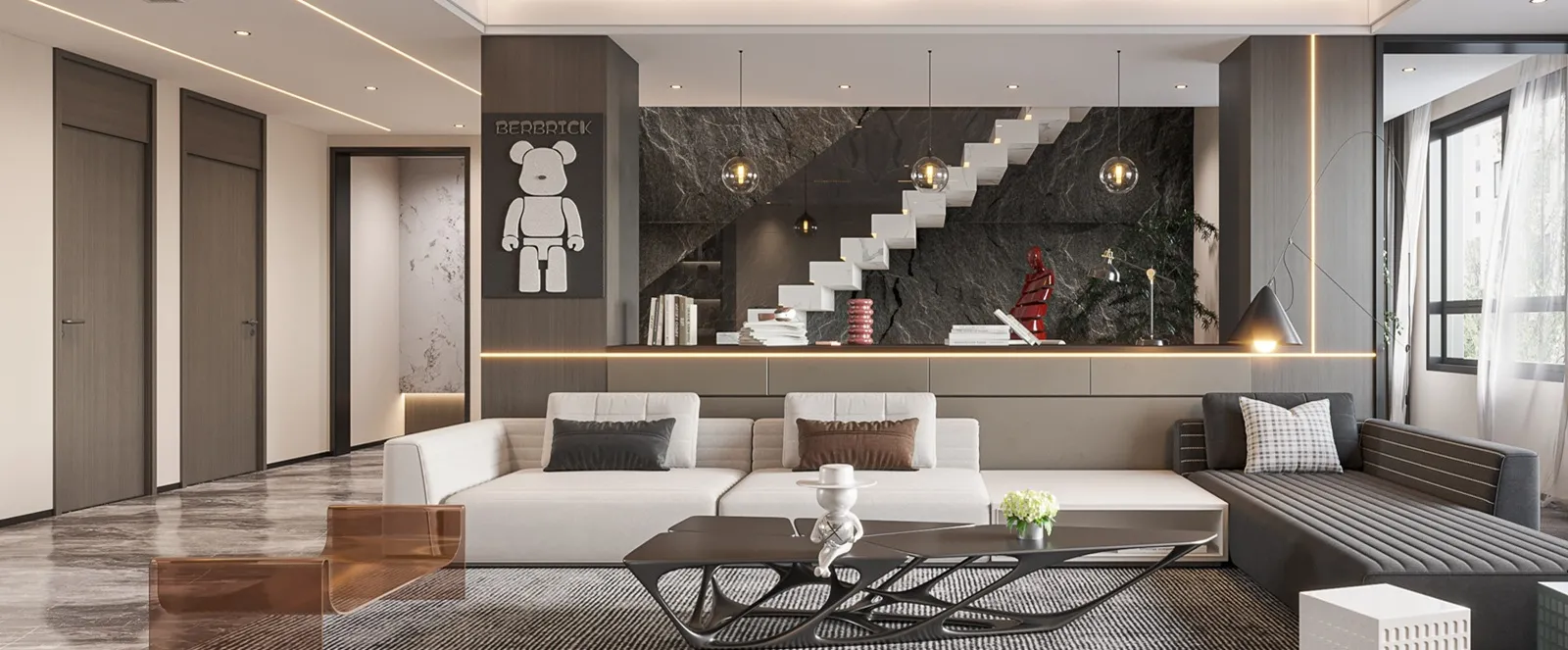

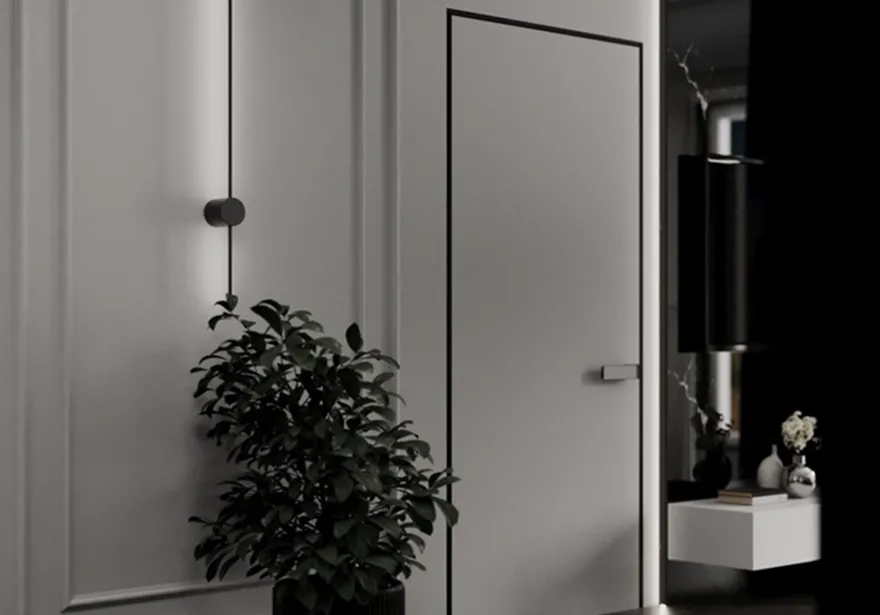

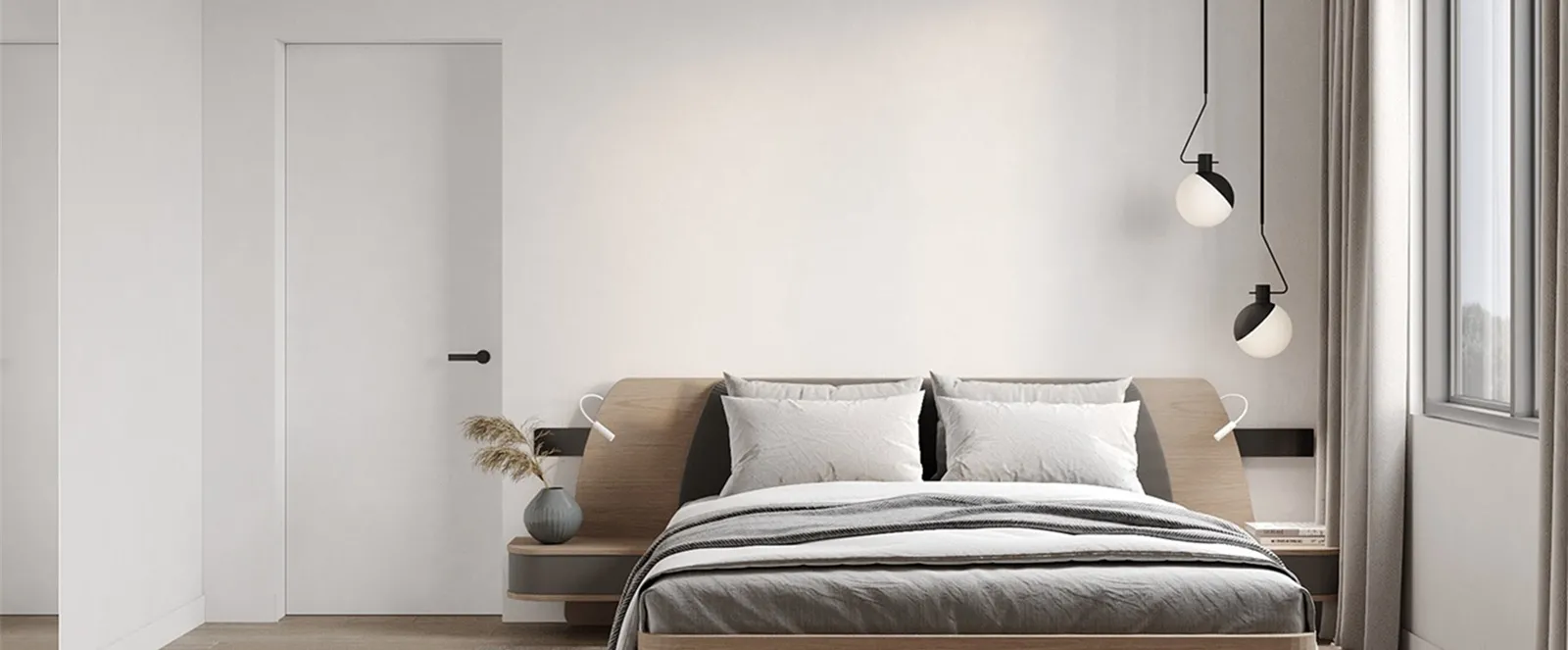

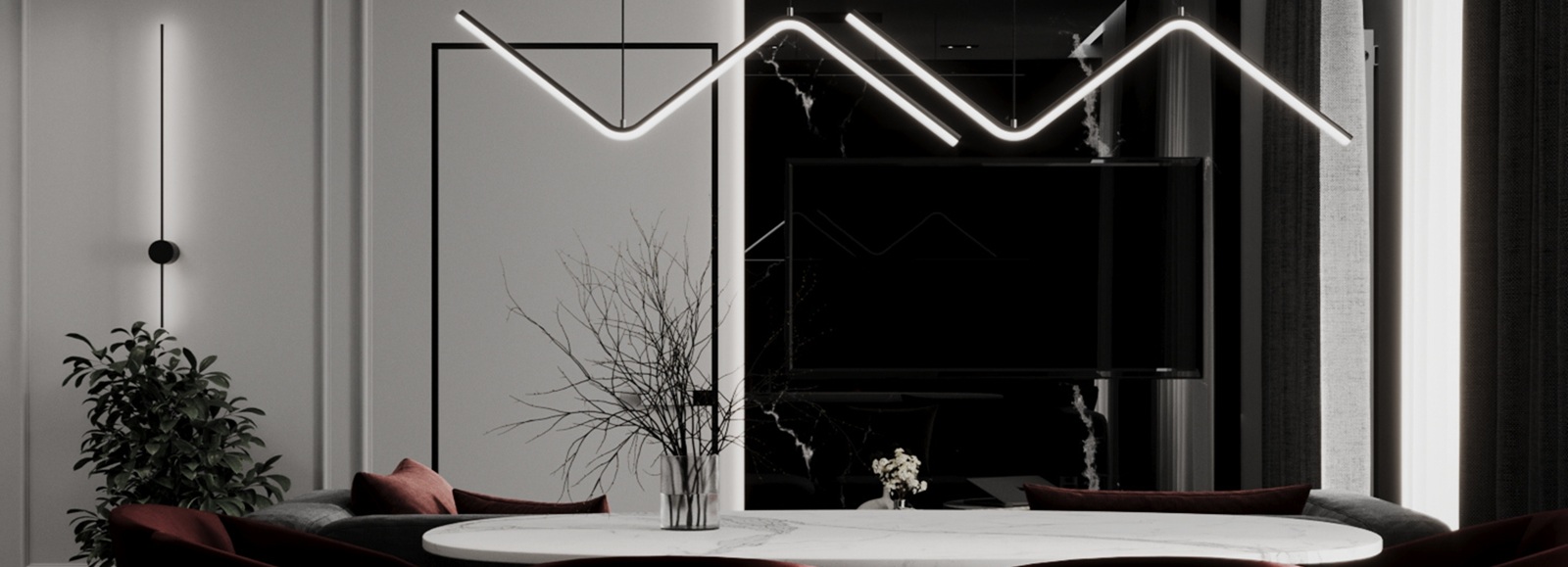

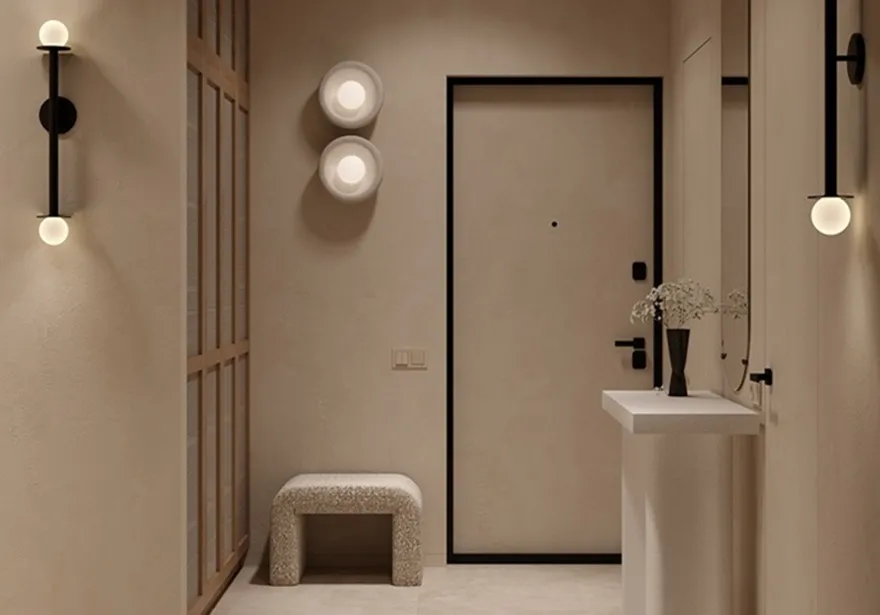

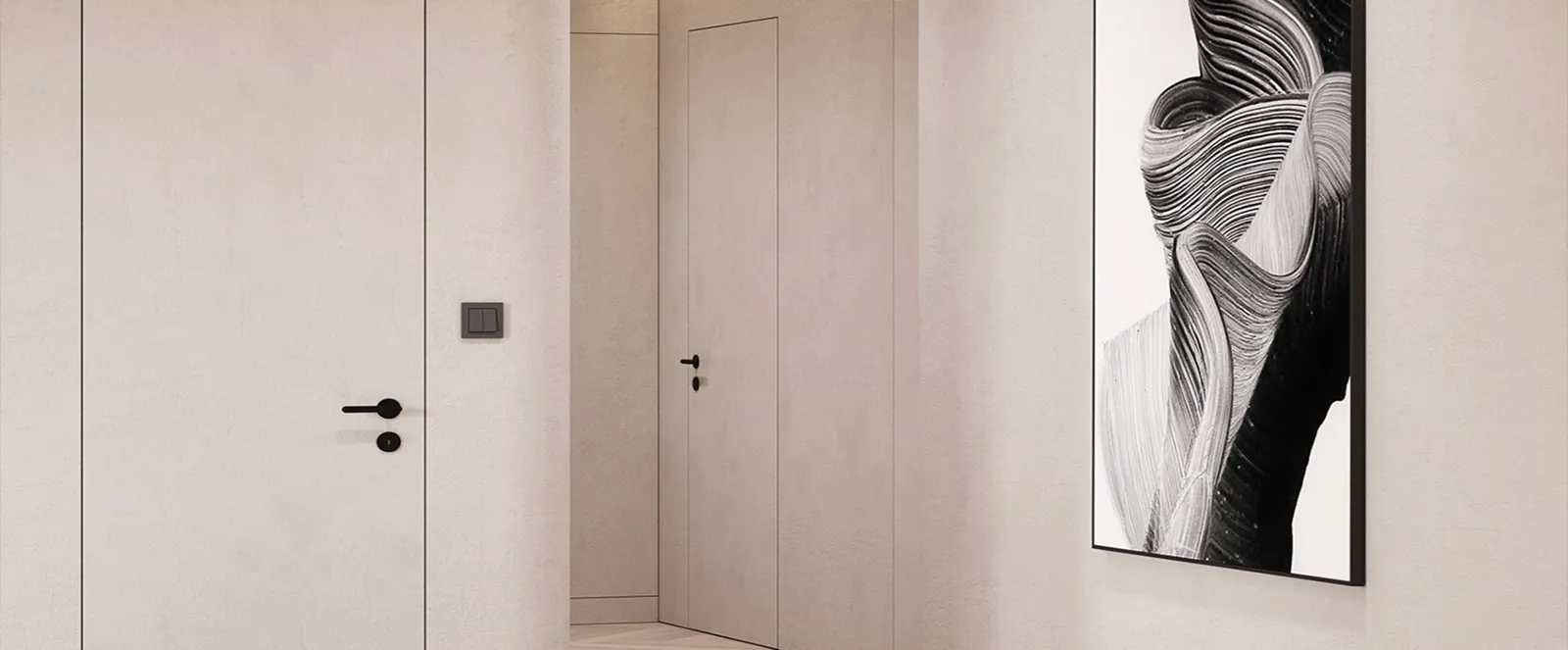

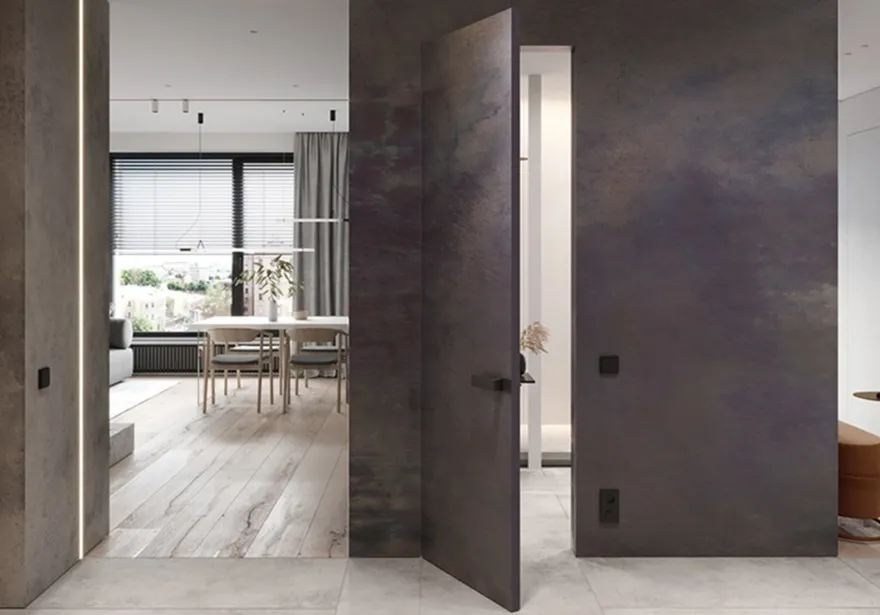

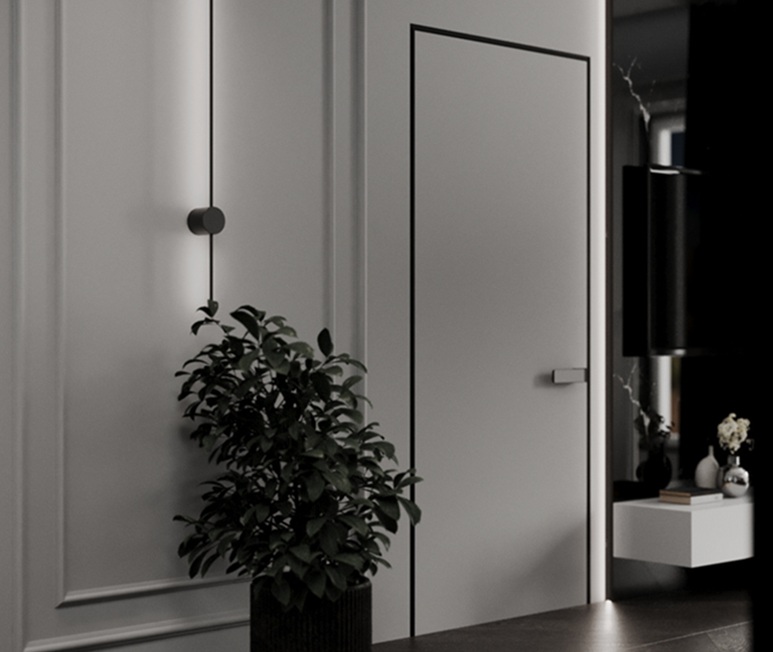

Hidden Aluminum Wood Door

Engineered for Perfection: Superior Performance

Feature:High-density core options (solid wood slats or honeycomb) and multichamber sealing

Advantage: Enjoy remarkable sound insulation (Rw > 40 dB) for private offices or quiet bedrooms and improved thermal efficiency for better climate control and energy savings. It’s peace and quiet built-in.

Silent, Smooth, and Effortless Operation

Feature: Premium, fully concealed hardware: 3D-adjustable pivot hinges or silent sliding mechanisms from industry-leading brands.

Advantage:

Experience a satisfying, whisper-quiet operation with a soft-close function. The precision engineering ensures perfect alignment and buttery-smooth

movement for decades, Luxury is felt in every interaction.

Unwavering Stability in Any Climate

Feature: The aluminum frame is immune to humidity, swelling, and shrinking.

Advantage: Unlike traditional solid wood doors, our hidden doors will not warp, crack, or stick guaranteeing perfect operation year-round, whether in a humid coastal home or a dry, heated apartment. It’s reliability you can trust.

Ultimate Customization

Feature: Made-to-order in any size, with a limitless selection of wood species, paints, laminates, and finishes.

Advantage: We don’t just sell a door; we provide a bespoke architectural element.

Perfectly match your wall paint, wallpaper, or wood paneling for a truly seamless and custom look. Your imagination is the only limit.

① Core Construction & Materials		② Hardware System
Opening Styles	Single Action Door (Side-Hung) Double Action Door (Double-Swing)	Hinge Type	Invisible / Concealed Hinges, 3D Adjustable (vertical, horizontal, and pressure adjustment).
Opening Styles	Sliding Door (Pocket / Bypass) Pivot Door (Center-Hung) Folding Door (Bi-Fold / Multi-Fold)	Hinge Type
Standard Door Leaf Height	2000, 2100, 2200, 2300 \| 78.7″, 82.7″, 86.6″, 90.6″	Load Capacity	Hinges must support the full door leaf weight. Typically rated for doors from 60kg to 120kg
Standard Door Leaf Width	600, 700, 800, 900 \| 23.6″, 27.6″, 31.5″, 35.4″	Cycle Testing	High-quality hinges are tested to 100,000+ open/close cycles (Grade 1 per EN 1935).
Common Door Leaf Thickness	35, 40, 45, 50 \| 1.4″, 1.6″, 1.8″, 2.0″	Closing Mechanism	Integrated Hydraulic Closer (hidden in the door leaf or threshold). Adjustable closing speed and latching force.
Core Material	Aluminum Alloy Frame (2.0mm thickened aviation aluminum)	Latching System	Push-to-Open Latch or Magnetic Touch Latch.
Door Thickness	Typically 60mm or customized based on design and structural requirements.	For locking	For locking: Integrated, concealed mechanical or electronic lock.
Frame Material	High-Grade Aluminum Alloy (6063-T5)	③ Performance & Testing Standards
Wall thickness	typically 1.8mm - 2.5mm	Fire Resistance (Option)	Can be rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2
Core Infill Material	Option A (Premium):Solid Wood Slats (e.g., Nordic Spruce, Fir) or Laminated Veneer Lumber (LVL).	Sound Insulation	30-42 dB. Performance depends on core density, seals, and installation. Tested per EN ISO 10140
	Option B (Lightweight): Aluminum Honeycomb Core.
	Option C (Composite): Particle Board (MDF/HDF) with moisture resistance.
Interior Surface	Real Wood Veneer (Oak, Walnut, Ash, Teak, etc.) or High-Pressure Laminate (HPL). Thickness: 0.6mm - 3.0mm.	Thermal Insulation	U-value: ~1.5 - 2.5 W/m²K. Primarily for interior climate separation.
Exterior Surface	Powder-coated aluminum frame, finished to match the interior veneer or wall color.	Durability	Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure.
Edge Banding	ABS or aluminum edge banding for durability and a clean finish.	Stability & Deflection	Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019).
