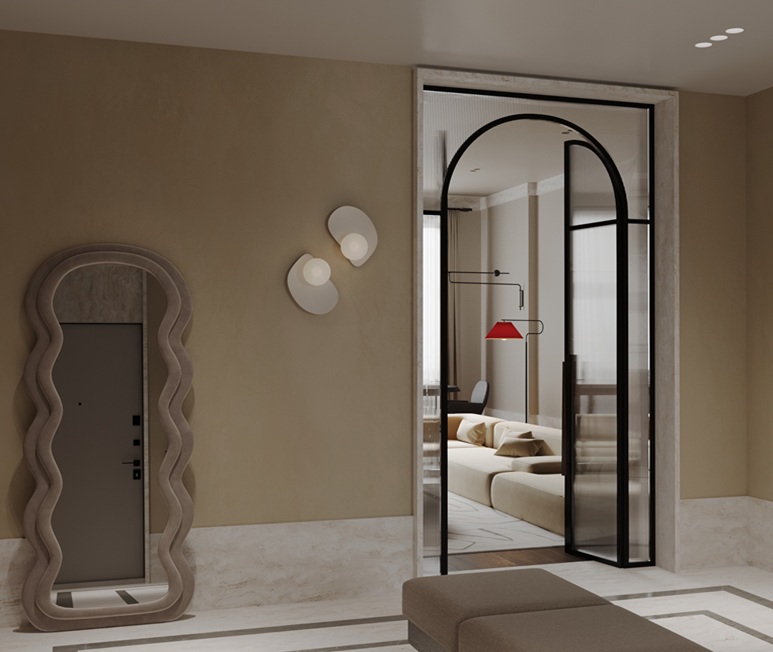

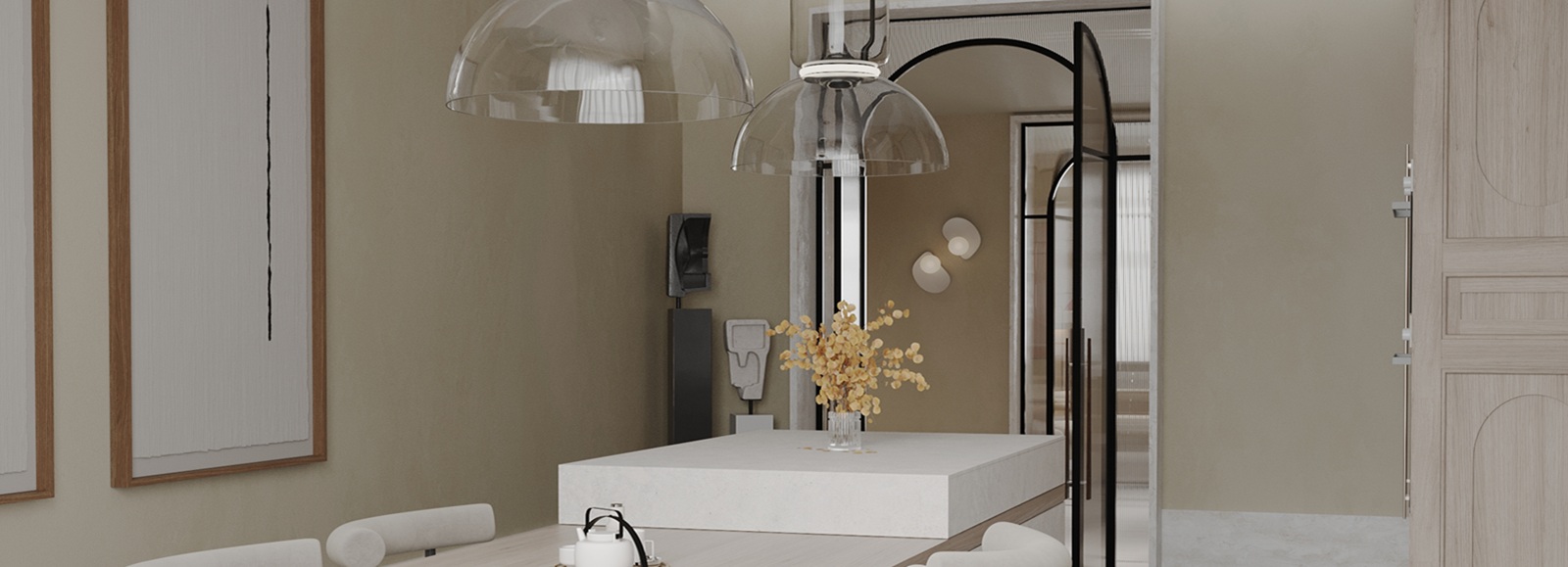

Modern interior door

① KEY ADVANTAGES & FEATURES

Modern Aesthetics:

Slim profiles and expansive glass panels create a sleek, minimalist look, enhancing natural light flow and visual space.

Durability & Stability:

Aluminum is corrosion-resistant, non-warping, and maintains structural integrity in humid environments (e.g., bathrooms, kitchens).

Customization Flexibility:

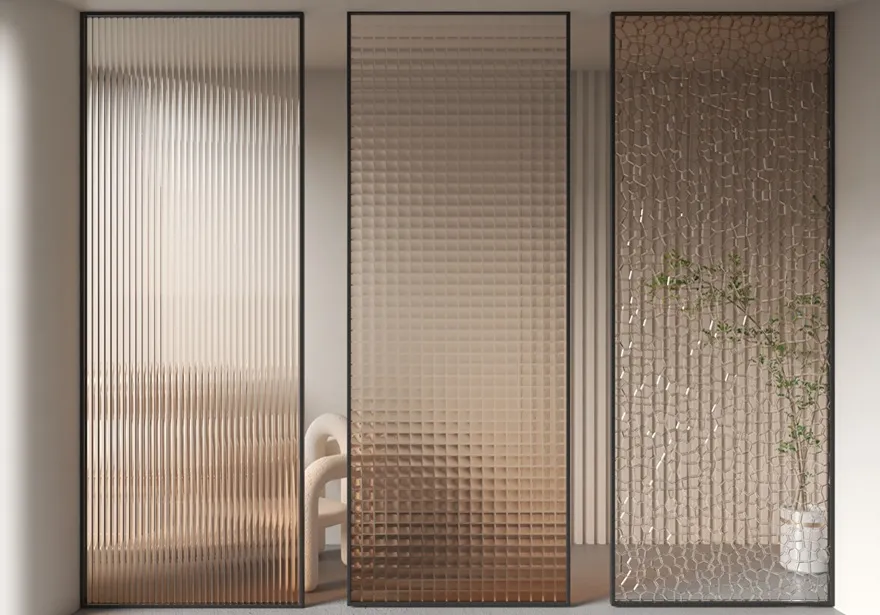

Glass Options: Clear, frosted, tinted, textured, laminated, or double-glazed for privacy/acoustics.

Frame Finishes: Anodized or powder-coated in black, silver, bronze, woodgrain, etc.

Size Range: Tailored to large/openings (up to 3m+ height/width).

Low Maintenance:

Resistant to rot/rust; easy cleaning (glass + wipeable frames).

Space Efficiency:

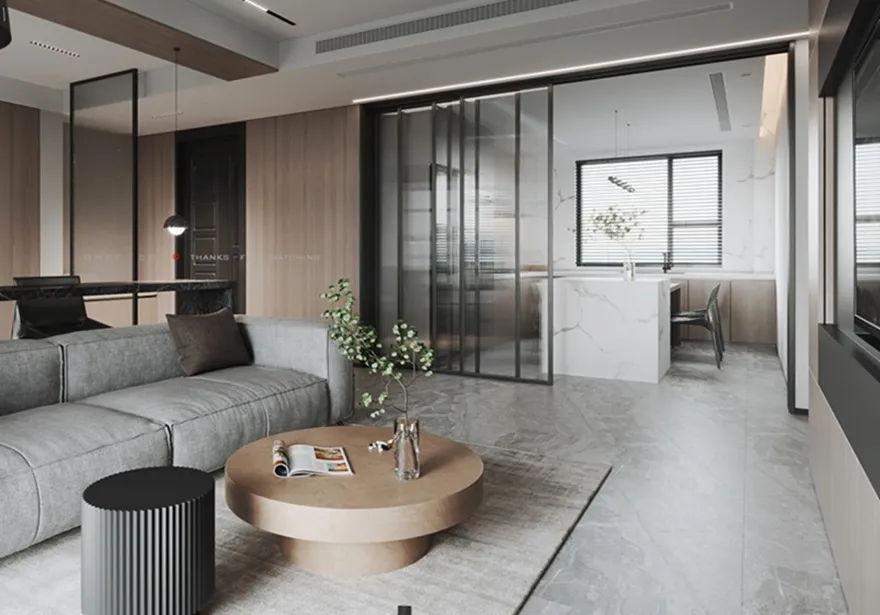

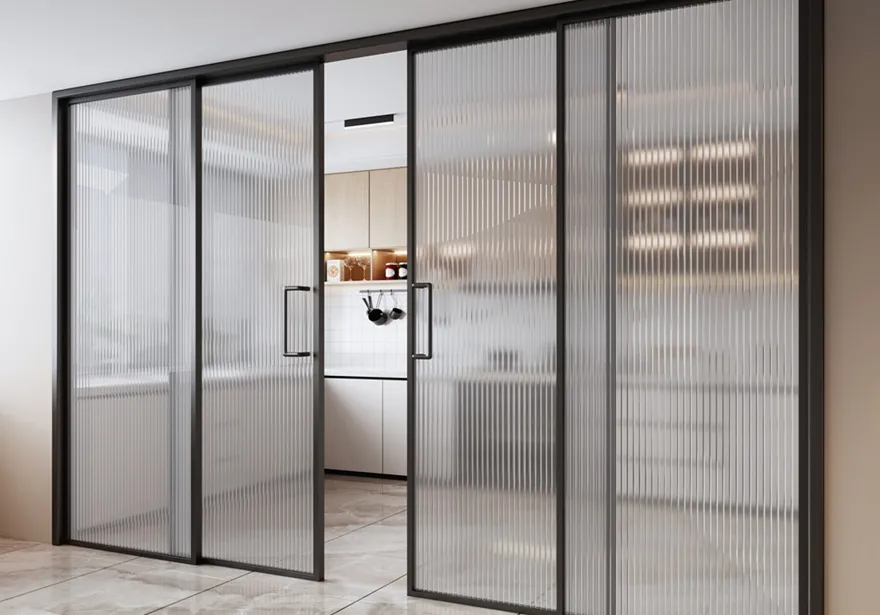

Sliding/pivot designs save space vs. swing doors; slim frames maximize glass area.

Eco-Friendly:

Aluminum is 100% recyclable; thermal breaks reduce energy transfer.

② IDEAL APPLICATIONS

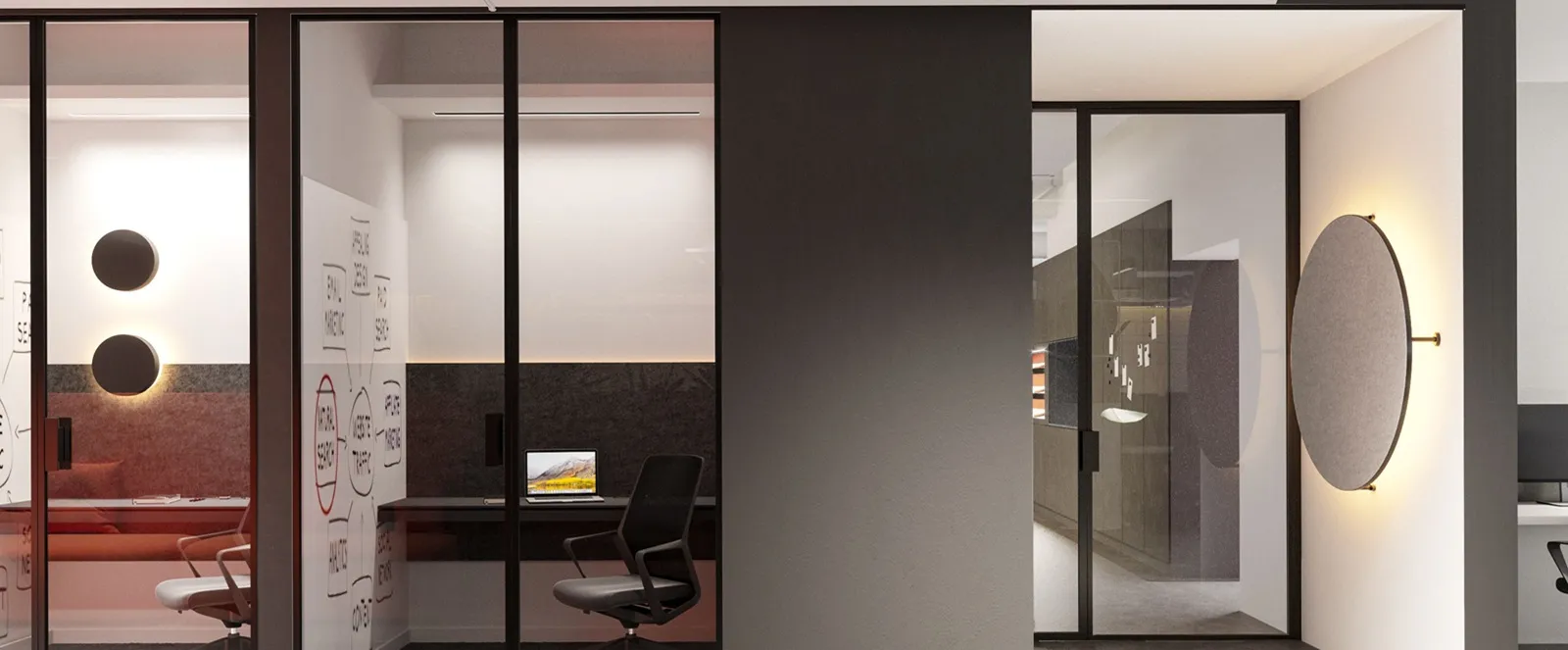

Commercial: Office partitions, retail stores, hotels.

Residential: Room dividers, balcony entrances, shower enclosures.

High-Traffic Areas: Corridors, public buildings (durability advantage).

Inquiry now + Next Product +

Modern interior door

Characteristics

CUSTOMIZABLE TO PERFECTION

AVAILABLE IN A SPECTRUM OF ANODIZED (E.G., CLEAR, BLACK) OR POWDER-COATED (ANY RAL COLOR) FINISHES AND VARIOUS GLASS OPTIONS (CLEAR, ULTRA-CLEAR, FROSTED, PRINTED) TO MATCH ANY DESIGN VISION PERFECTLY.

DURABLE & EASY MAINTENANCE

THE ROBUST ALUMINUM PROFILE AND HARDENED GLASS ARE RESISTANT TO WARPING, CORROSION, AND WEAR. THEY ARE INCREDIBLY EASY TO CLEAN AND MAINTAIN THEIR LIKE-NEW APPEARANCE FOR YEARS.

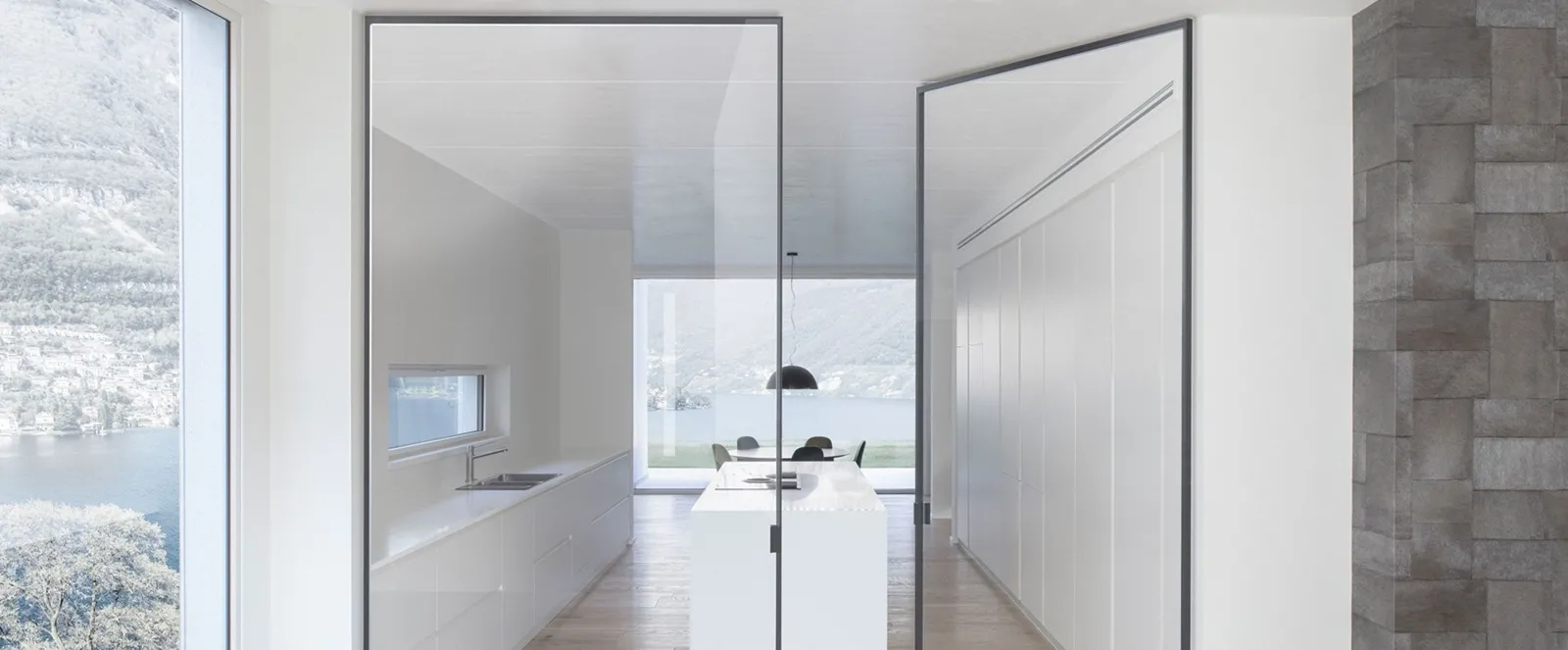

MAXIMIZED NATURAL LIGHT

FLOOD YOUR INTERIOR WITH NATURAL LIGHT. THE LARGE GLASS PANELS ENHANCE BRIGHTNESS AND OPENNESS,CREATING A WELCOMING AND UPLIFTING ATMOSPHERE AND REDUCING THE NEED FOR ARTIFICIAL LIGHTING.

SPACE-SAVING SOLUTION

THE CLEAN SWING OF THE PIVOT HINGE REQUIRES NO SIDE CLEARANCE FOR HINGES, MAKING IT IDEAL FOR TIGHT SPACES AND ALLOWING FOR MORE FLEXIBLE FURNITURE PLACEMENT.

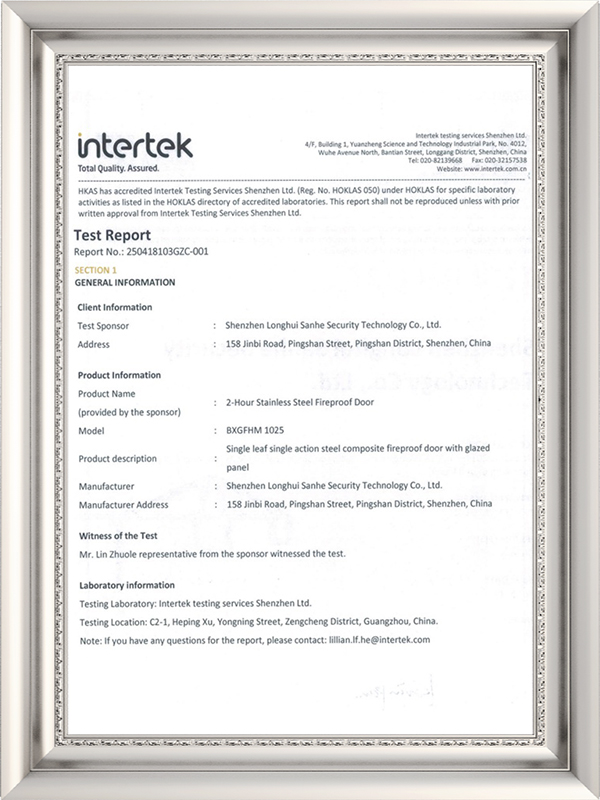

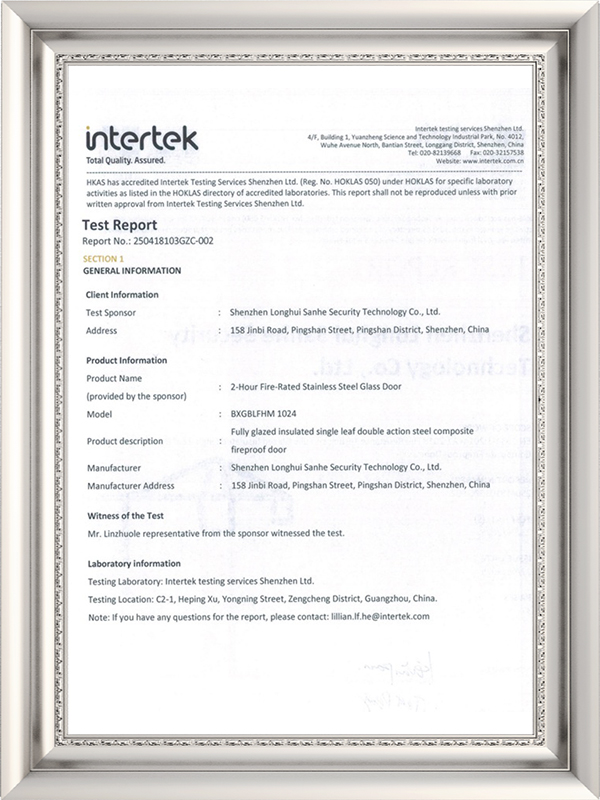

Certification Standard

① Operational Cycle Test EN 1191 | ASTM > 100,000 cycles (endurance grade)

② Air Permeability EN 12207 | Class 2 (or as required)

③ Water Tightness EN 12208 | Not typically required for interior doors.

④ Wind Resistance | EN 12211 | Not typically required for interior doors.

⑤ Acoustic Performance | EN ISO 717-1 | Rw: ~25-32 dB (Depends on glass configuration - higher with laminated glass)

⑥ Safety | EN 12600 | Class 1B1 (Tempered glass standard)

Technical data

① Core Construction & Materials		② Hardware System

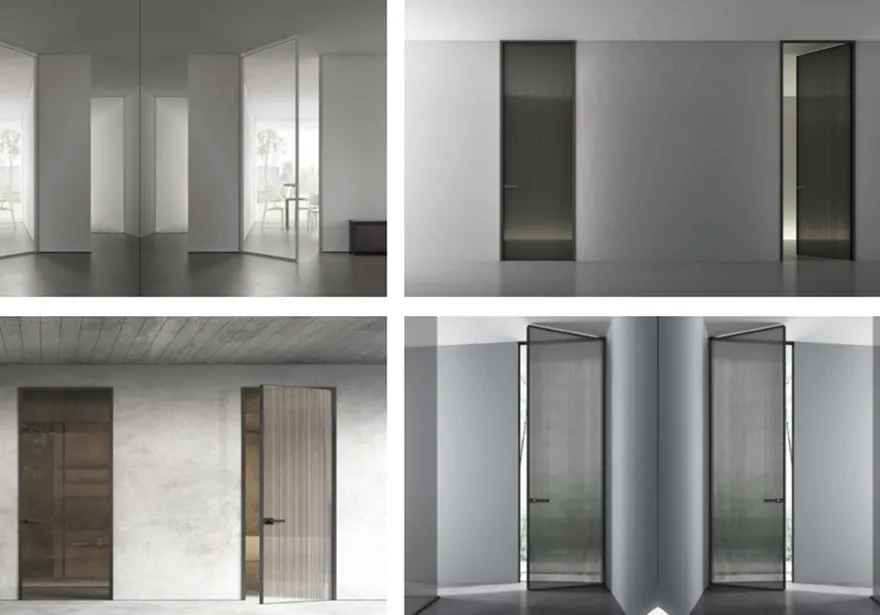

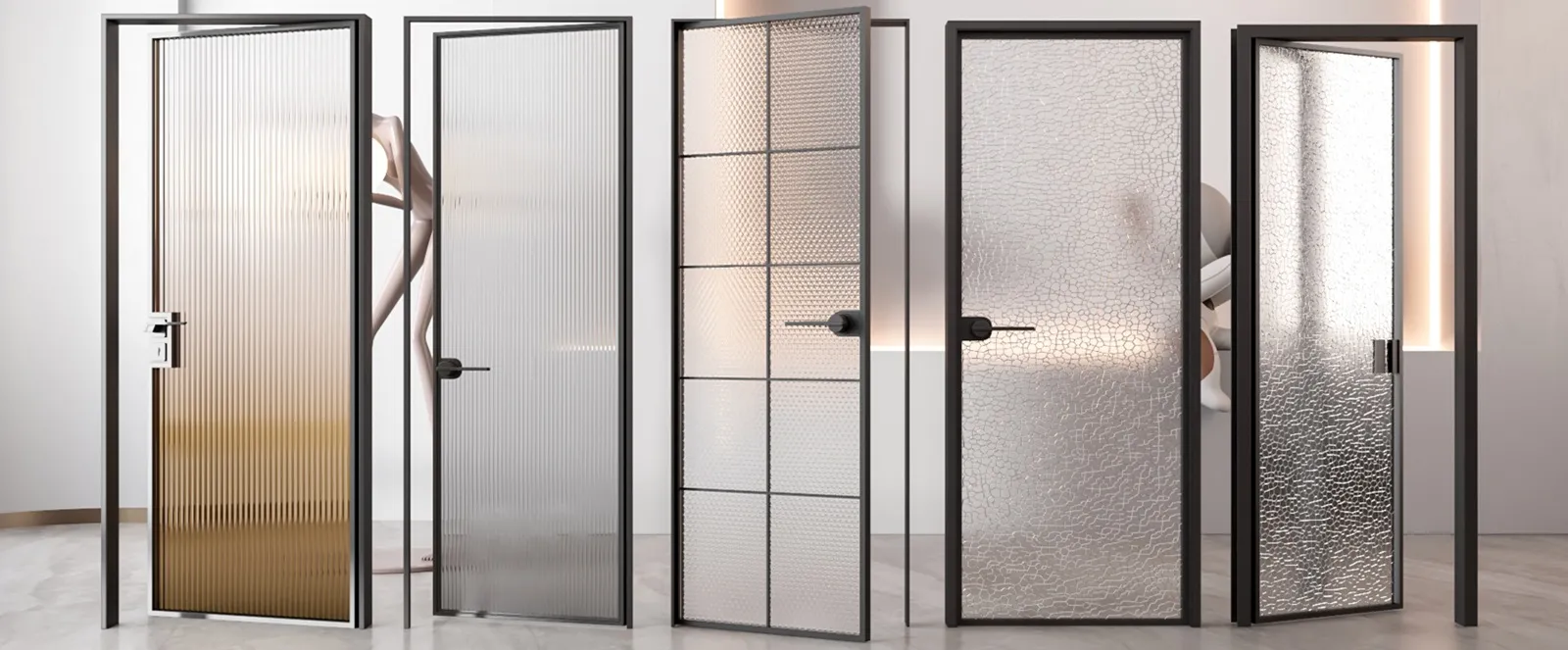

Opening Styles	Single Action Door (Side-Hung) Double Action Door (Double-Swing)	Hinge Type	Invisible / Concealed Hinges, 3D Adjustable (vertical, horizontal, and pressure adjustment).
Opening Styles	with or without mullion	Hinge Type
Standard Door Leaf Height	2000, 2100, 2200, 2300 \| 78.7″, 82.7″, 86.6″, 90.6″	Load Capacity	Hinges must support the full door leaf weight. Typically rated for doors from 60kg to 120kg
Standard Door Leaf Width	600, 700, 800, 900 \| 23.6″, 27.6″, 31.5″, 35.4″	Cycle Testing	High-quality hinges are tested to 100,000+ open/close cycles (Grade 1 per EN 1935).
Common Door Leaf Thickness	~35mm - 50mm (varies with glass thickness and profile design)	Closing Mechanism	Integrated Hydraulic Closer (hidden in the door leaf or threshold). Adjustable closing speed and latching force.
Core Material	Aluminum Alloy Frame (2.0mm thickened aviation aluminum)	Latching System	Push-to-Open Latch or Magnetic Touch Latch.
Door Thickness	Typically 60mm or customized based on design and structural requirements.	For locking	For locking: Integrated, concealed mechanical or electronic lock.
Frame Material	High-Grade Aluminum Alloy	③ Performance & Testing Standards
Wall thickness	typically 1.8mm - 2.5mm	Fire Resistance (Option)	Can be rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2
Core Infill Material	Tempered (Toughened) safety glass, standard.	Sound Insulation	Rw 30-42 dB. Performance depends on core density, seals, and installation. Tested per EN ISO 10140
	Laminated glass for enhanced acoustic or safety performance is optional.
	Thickness: 10mm / 12mm / 12.38" (½") / 15mm thick clear, ultra-clear (low-iron), or tinted glass.
Interior Surface	Frosted, Silk-screen printed, Patterned, or Sandblasted for privacy.	Thermal Insulation	U-value: ~1.5 - 2.5 W/m²K. Primarily for interior climate separation.
Finishes & Customization	Anodized Finises:Clear Anodized (AA15 or AA25), Black Anodized, Champagne Anodized.	Durability	Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure.
	Powder Coat Finishes:Any standard RAL color (e.g., RAL 9016 Pure White, RAL 7021 Black Grey) or custom Pantone match.	Stability & Deflection	Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019).
	Glass Options: Clear, Ultra-Clear (Low-Iron), Grey, Bronze, Blue, Frosted, Printed patterns.	Compliance	Can be specified to meet specific project requirements under local building codes.
