| ① Core Construction & Materials |
| ② Hardware System |
| Opening Styles | Single Action Door (Side-Hung) Double Action Door (Double-Swing) | Hinge Type | Invisible / Concealed Hinges, 3D Adjustable (vertical, horizontal, and pressure adjustment). |
| with or without mullion |
| Standard Door Leaf Height | 2000, 2100, 2200, 2300 | 78.7″, 82.7″, 86.6″, 90.6″ | Load Capacity | Hinges must support the full door leaf weight. Typically rated for doors from 60kg to 120kg |
| Standard Door Leaf Width | 600, 700, 800, 900 | 23.6″, 27.6″, 31.5″, 35.4″ | Cycle Testing | High-quality hinges are tested to 100,000+ open/close cycles (Grade 1 per EN 1935). |
| Common Door Leaf Thickness | ~35mm - 50mm (varies with glass thickness and profile design) | Closing Mechanism | Integrated Hydraulic Closer (hidden in the door leaf or threshold). Adjustable closing speed and latching force. |
| Core Material | Aluminum Alloy Frame (2.0mm thickened aviation aluminum) | Latching System | Push-to-Open Latch or Magnetic Touch Latch. |
| Door Thickness | Typically 35-50mm or customized based on design and structural requirements. | For locking | For locking: Integrated, concealed mechanical or electronic lock. |
| Frame Material | High-Grade Aluminum Alloy | ③ Performance & Testing Standards |

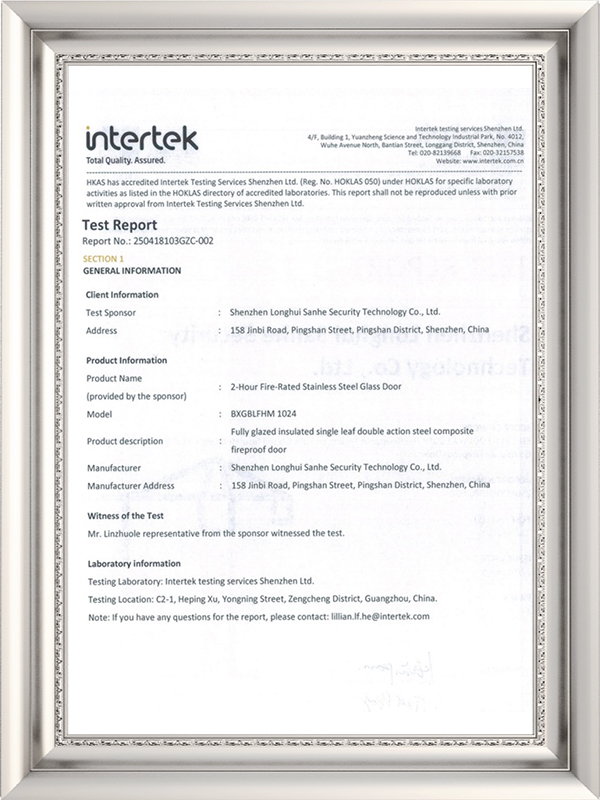

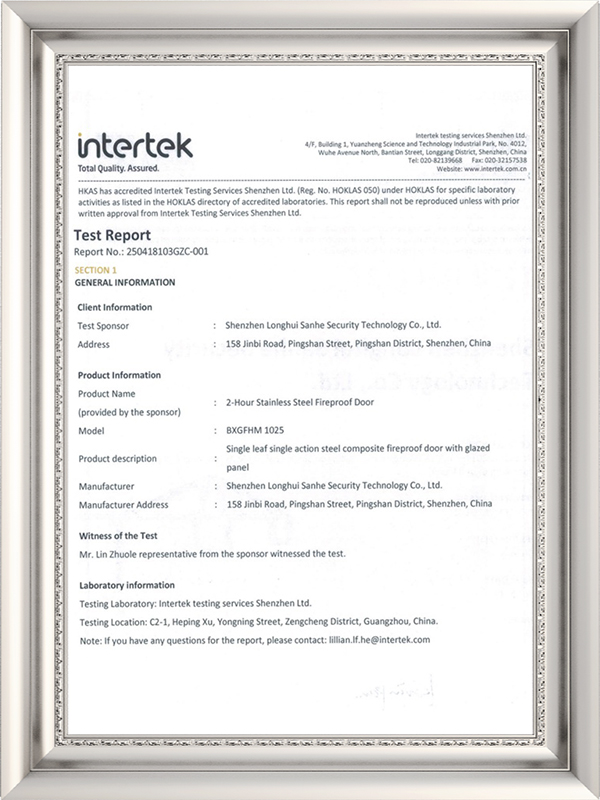

| Wall thickness | typically 1.8mm - 2.5mm | Fire Resistance (Option) | Can be rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2 |
| Core Infill Material | Tempered (Toughened) safety glass, standard. | Sound Insulation | Rw 30-42 dB. Performance depends on core density, seals, and installation. Tested per EN ISO 10140 |
| Laminated glass for enhanced acoustic or safety performance is optional. |
| Thickness: 10mm / 12mm / 12.38" (½") / 15mm thick clear, ultra-clear (low-iron), or tinted glass. |
| Interior Surface | Frosted, Silk-screen printed, Patterned, or Sandblasted for privacy. | Thermal Insulation | U-value: ~1.5 - 2.5 W/m²K. Primarily for interior climate separation. |
| Finishes & Customization | Anodized Finishes:Clear Anodized (AA15 or AA25), Black Anodized, Champagne Anodized. | Durability | Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure. |
| Powder Coat Finishes:Any standard RAL color (e.g., RAL 9016 Pure White, RAL 7021 Black Grey) or custom Pantone match. | Stability & Deflection | Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019). |

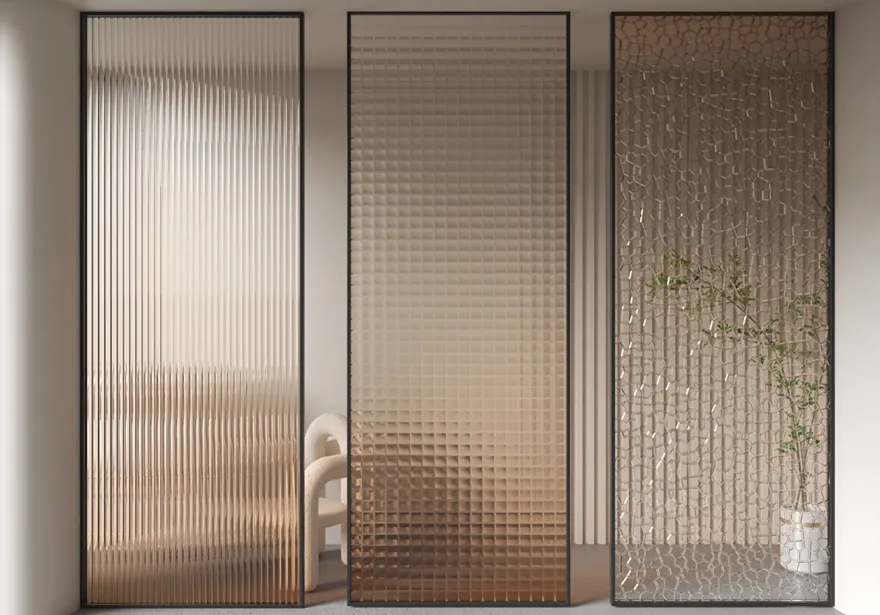

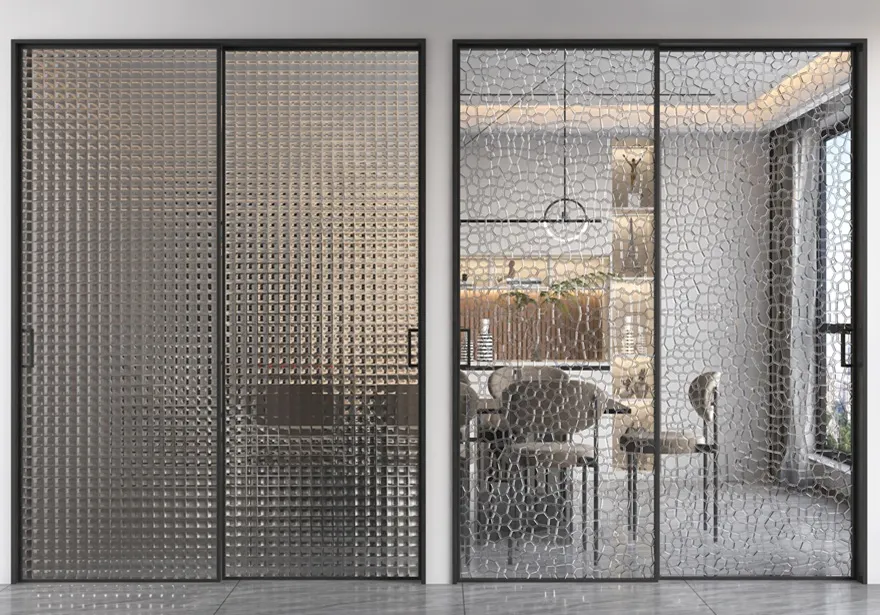

| Glass Options: Clear, Ultra-Clear (Low-Iron), Grey, Bronze, Blue, Frosted, Printed patterns. | Compliance | Can be specified to meet specific project requirements under local building codes. |
