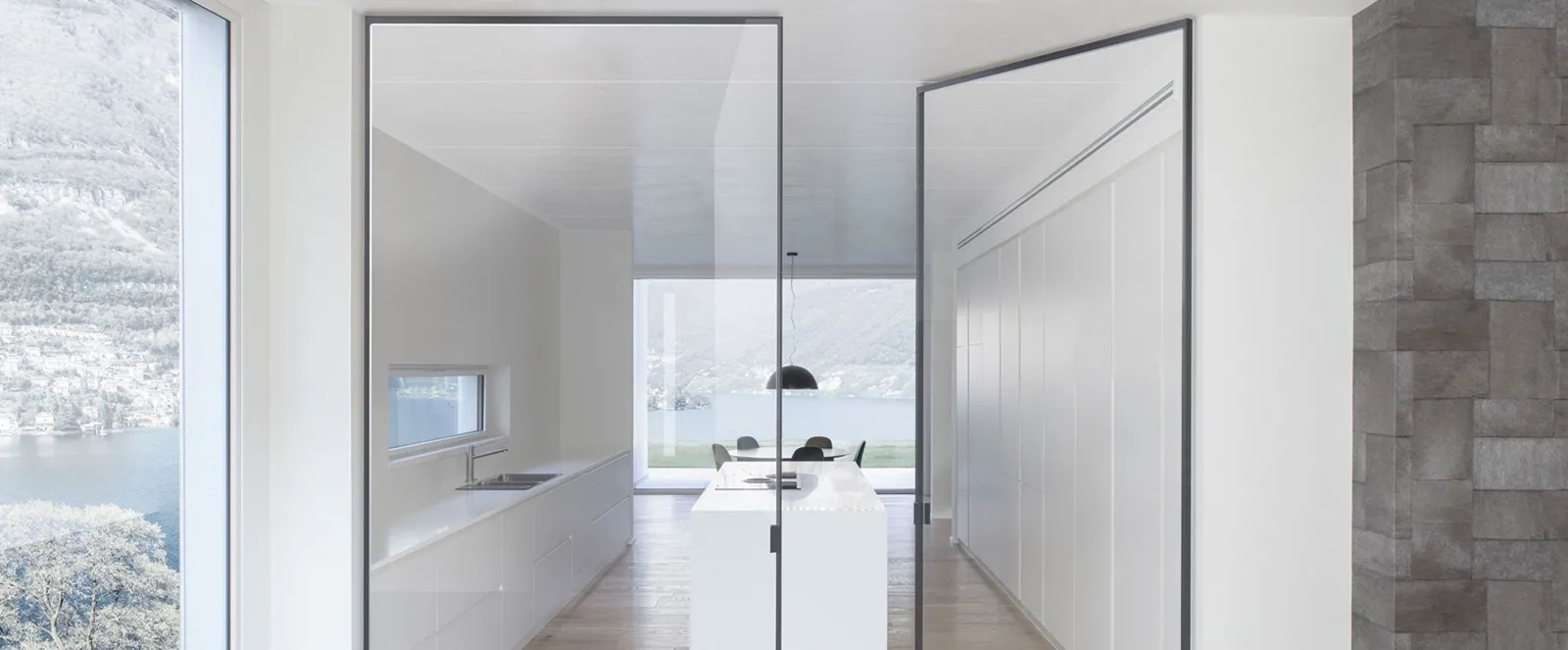

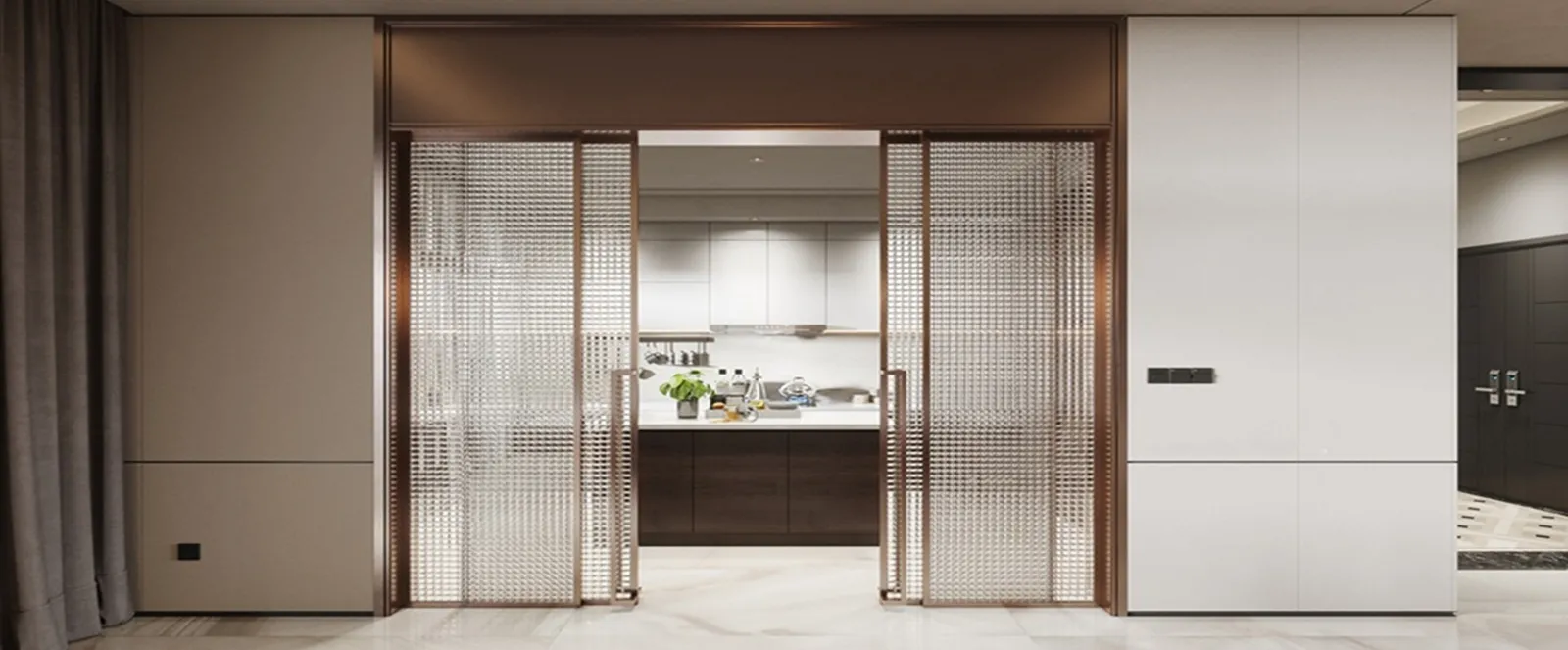

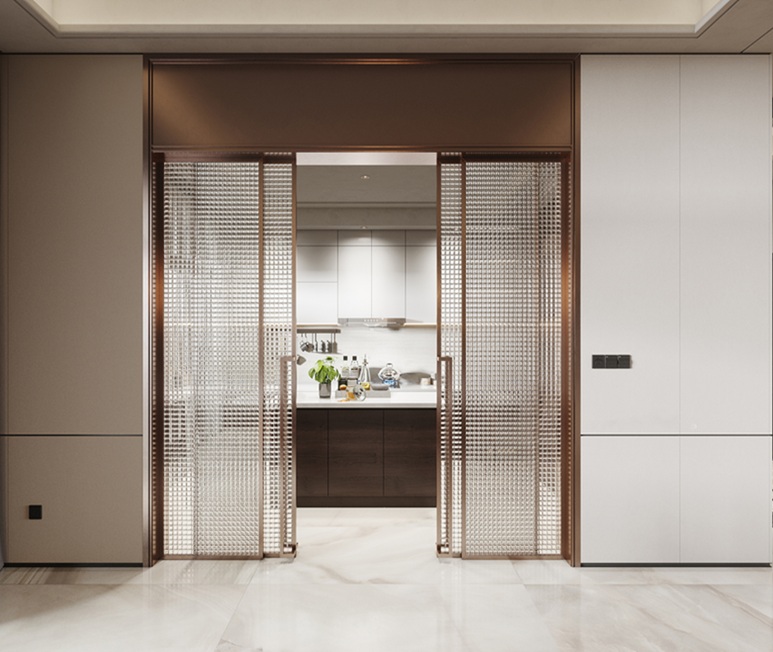

Sliding Aluminum Glass Door for Kitchen

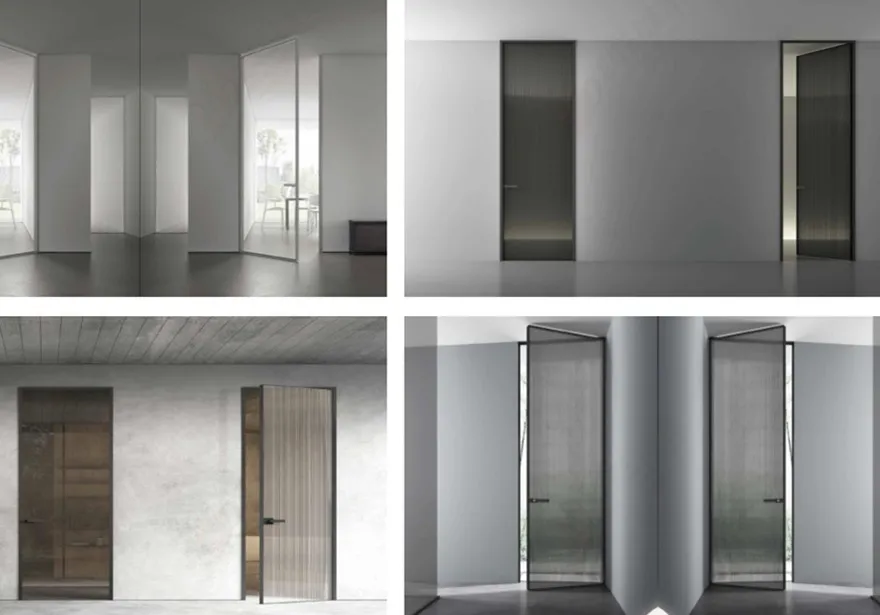

The door is designed with a minimalist aesthetic, featuring a virtually invisible pivot hardware system for a seamless and modern appearance.

The system is suitable for residential and commercial interior applications such as room dividers, entrance doors to offices and premium living spaces.

Why Choose Our Hidden Doors?

Elevate Property Value: This is a premium feature that signals high-end design and quality to potential buyers.

Maximize Space: Eliminate the swing space required by traditional doors, making them ideal for small rooms or tight layouts.

Design Freedom: Solve design challenges creatively, hiding rooms, closets, or pantries without sacrificing style.

A Statement of Luxury: This is more than a door; it's a statement of sophisticated taste and investment in quality.

Call to Action (CTA)

Ready to transform your space with invisible sophistication?

Browse our project gallery for inspiration.

Download our technical specification sheet to see the engineering behind the beauty.

Contact our design consultants today for a custom quote. Let us help you design the perfect hidden solution for your project.

Inquiry now +

Sliding Aluminum Glass Door for Kitchen

Characteristics

CUSTOMIZABLE TO PERFECTION

AVAILABLE IN A SPECTRUM OF ANODIZED (E.G., CLEAR, BLACK) OR POWDER-COATED (ANY RAL COLOR) FINISHES AND VARIOUS GLASS OPTIONS (CLEAR, ULTRA-CLEAR, FROSTED, PRINTED) TO MATCH ANY DESIGN VISION PERFECTLY.

SLEEK & MINIMALIST

PERFECT FOR CONTEMPORARY HOMES, LUXURY OFFICES, AND HIGH-END RETAIL SPACES SEEKING A SLEEK, MINIMALIST AESTHETIC. IT'S NOT JUST A DOOR; IT'S A STATEMENT OF SOPHISTICATED DESIGN.

INVISIBLE FRAMEWORK

EXPERIENCE THE MAGIC OF A VIRTUALLY FRAMELESS DESIGN. OUR CONCEALED PIVOT SYSTEM AND MINIMAL HARDWARE CREATE A CLEAN, UNINTERRUPTED VISUAL FLOW, MAKING YOUR SPACES APPEAR LARGER AND MORE OPEN.

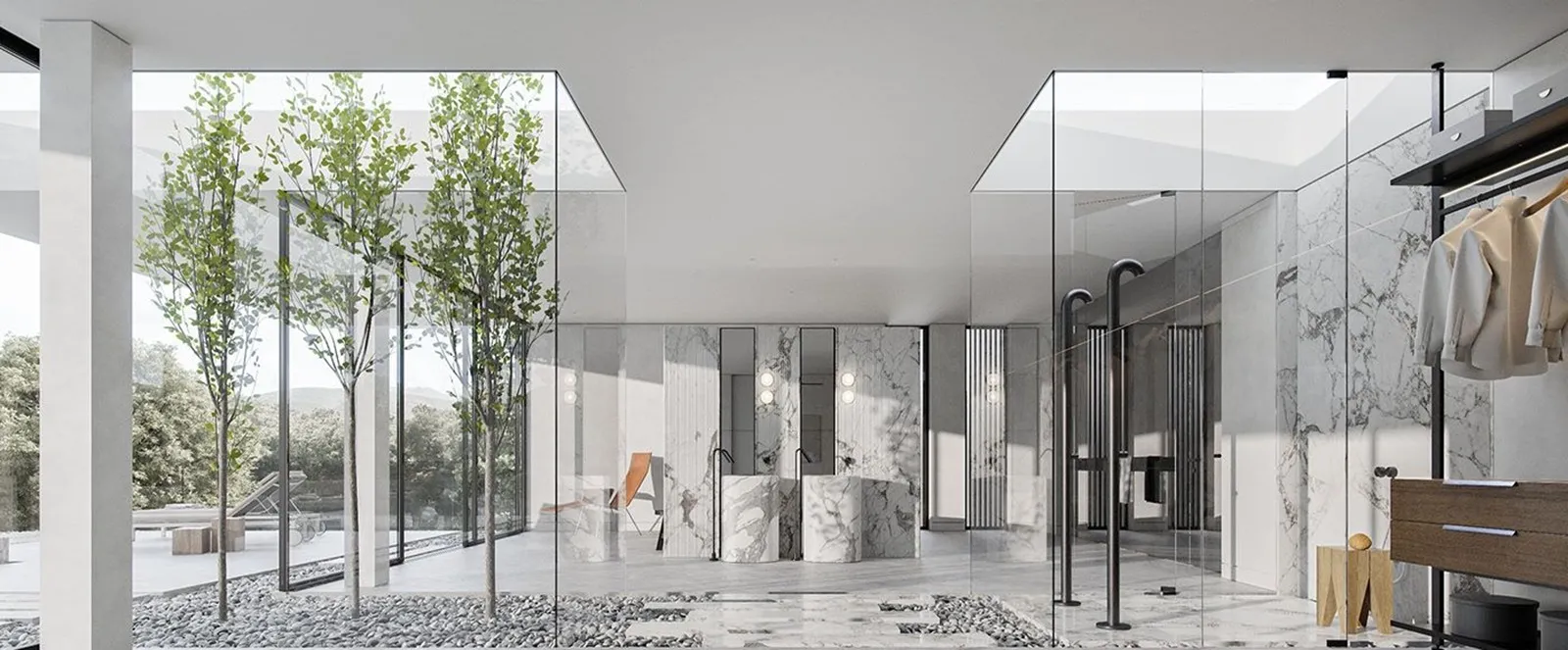

MAXIMIZED NATURAL LIGHT

FLOOD YOUR INTERIOR WITH NATURAL LIGHT. THE LARGE GLASS PANELS ENHANCE BRIGHTNESS AND OPENNESS,CREATING A WELCOMING AND UPLIFTING ATMOSPHERE AND REDUCING THE NEED FOR ARTIFICIAL LIGHTING.

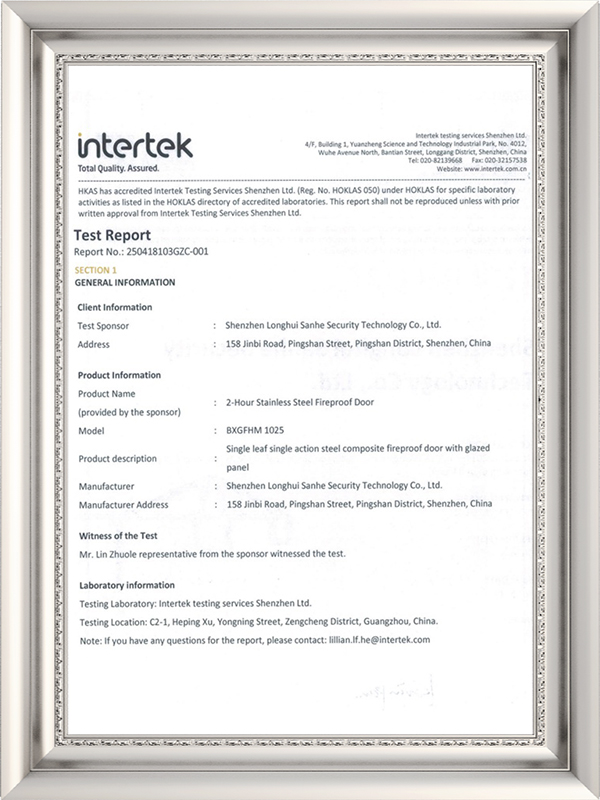

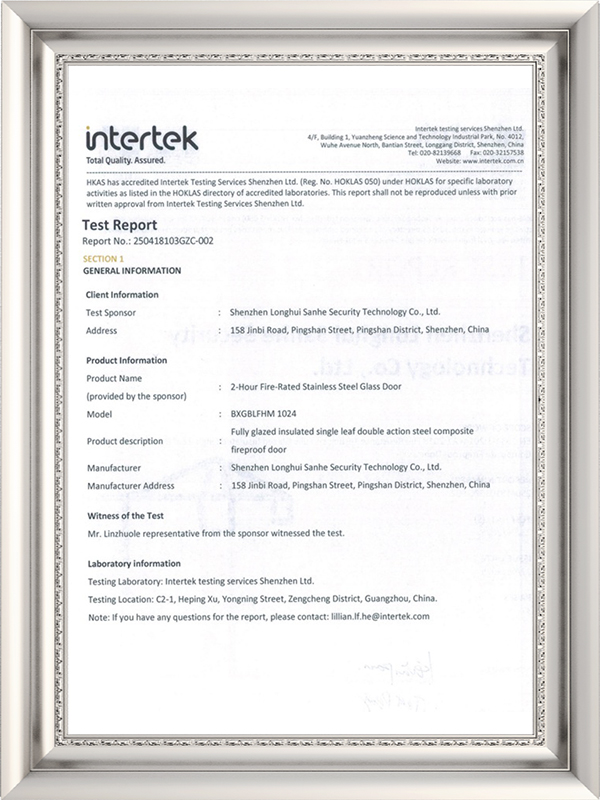

Certification Standard

① Operational Cycle Test EN 1191 | ASTM > 100,000 cycles (endurance grade)

② Air Permeability EN 12207 | Class 2 (or as required)

③ Water Tightness EN 12208 | Not typically required for interior doors.

④ Wind Resistance | EN 12211 | Not typically required for interior doors.

⑤ Acoustic Performance | EN ISO 717-1 | Rw: ~25-32 dB (Depends on glass configuration - higher with laminated glass)

⑥ Safety | EN 12600 | Class 1B1 (Tempered glass standard)

Technical data

① Core Construction & Materials		② Hardware System
Opening Styles	Single Action Door (Side-Hung) Double Action Door (Double-Swing)	Hinge Type	Invisible / Concealed Hinges, 3D Adjustable (vertical, horizontal, and pressure adjustment).
Opening Styles	with or without mullion	Hinge Type
Standard Door Leaf Height	2000, 2100, 2200, 2300 \| 78.7″, 82.7″, 86.6″, 90.6″	Load Capacity	Hinges must support the full door leaf weight. Typically rated for doors from 60kg to 120kg
Standard Door Leaf Width	600, 700, 800, 900 \| 23.6″, 27.6″, 31.5″, 35.4″	Cycle Testing	High-quality hinges are tested to 100,000+ open/close cycles (Grade 1 per EN 1935).
Common Door Leaf Thickness	~35mm - 50mm (varies with glass thickness and profile design)	Closing Mechanism	Integrated Hydraulic Closer (hidden in the door leaf or threshold). Adjustable closing speed and latching force.
Core Material	Aluminum Alloy Frame (2.0mm thickened aviation aluminum)	Latching System	Push-to-Open Latch or Magnetic Touch Latch.
Door Thickness	Typically 60mm or customized based on design and structural requirements.	For locking	For locking: Integrated, concealed mechanical or electronic lock.
Frame Material	High-Grade Aluminum Alloy	③ Performance & Testing Standards
Wall thickness	typically 1.8mm - 2.5mm	Fire Resistance (Option)	Can be rated up to EI 30 / EI 60 (30/60 minutes of integrity and insulation) per EN 1634 / EN 13501-2
Core Infill Material	Tempered (Toughened) safety glass, standard.	Sound Insulation	Rw 30-42 dB. Performance depends on core density, seals, and installation. Tested per EN ISO 10140
	Laminated glass for enhanced acoustic or safety performance is optional.
	Thickness: 10mm / 12mm / 12.38" (½") / 15mm thick clear, ultra-clear (low-iron), or tinted glass.

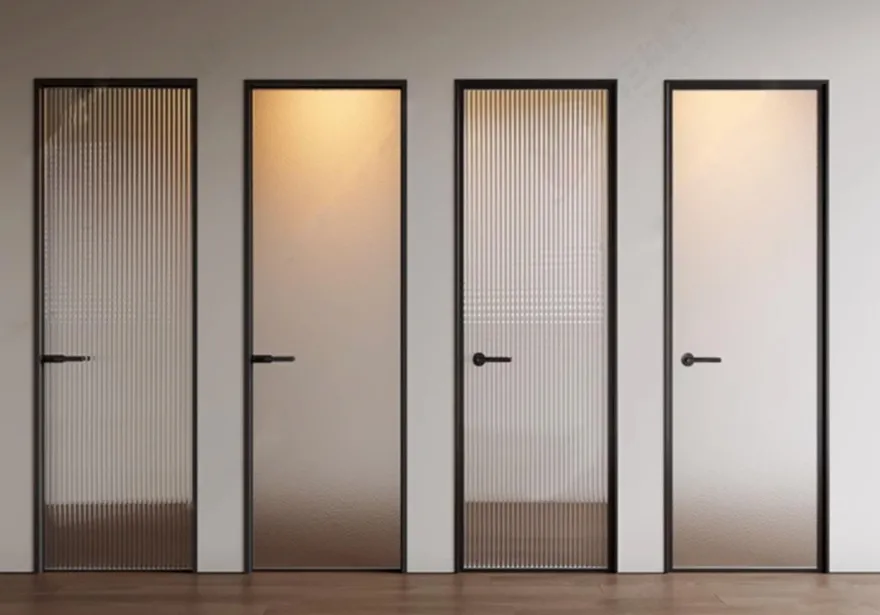

Interior Surface	Frosted, Silk-screen printed, Patterned, or Sandblasted for privacy.	Thermal Insulation	U-value: ~1.5 - 2.5 W/m²K. Primarily for interior climate separation.
Finishes & Customization	Anodized Finishes:Clear Anodized (AA15 or AA25), Black Anodized, Champagne Anodized.	Durability	Operational Cycle Test: Door system tested to 100,000 cycles (per EN 1191 without failure.
	Powder Coat Finishes:Any standard RAL color (e.g., RAL 9016 Pure White, RAL 7021 Black Grey) or custom Pantone match.	Stability & Deflection	Torsional Resistance: Door leaf resists warping under specified loads (per EN 14019).

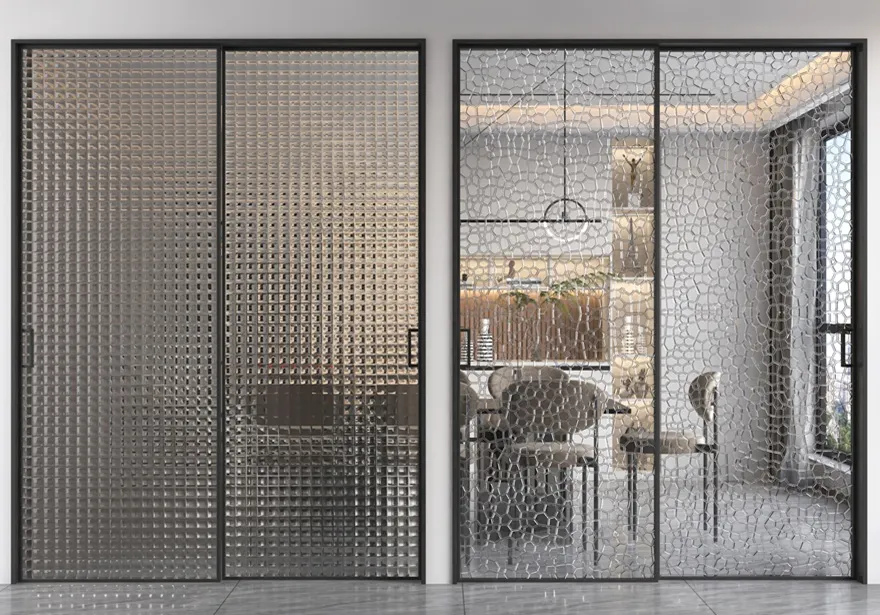

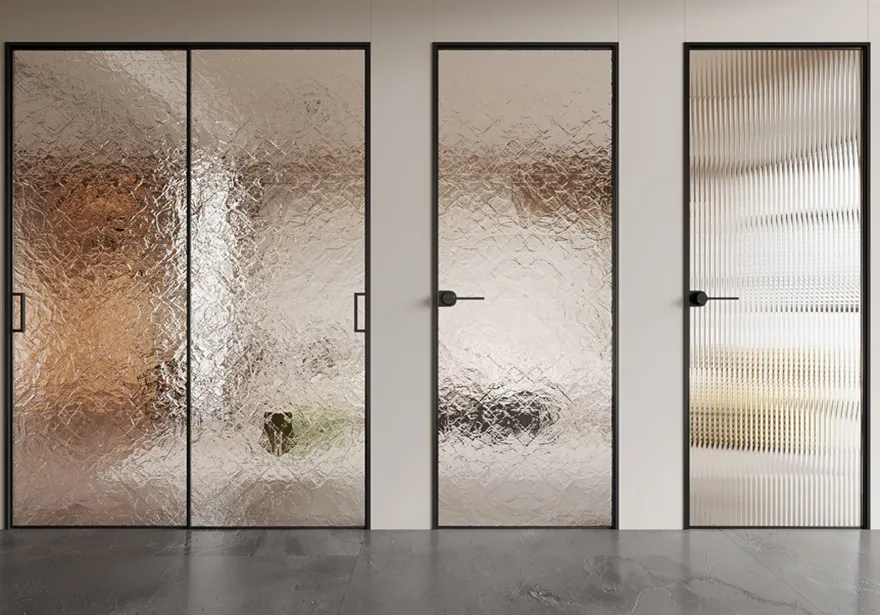

	Glass Options: Clear, Ultra-Clear (Low-Iron), Grey, Bronze, Blue, Frosted, Printed patterns.	Compliance	Can be specified to meet specific project requirements under local building codes.
