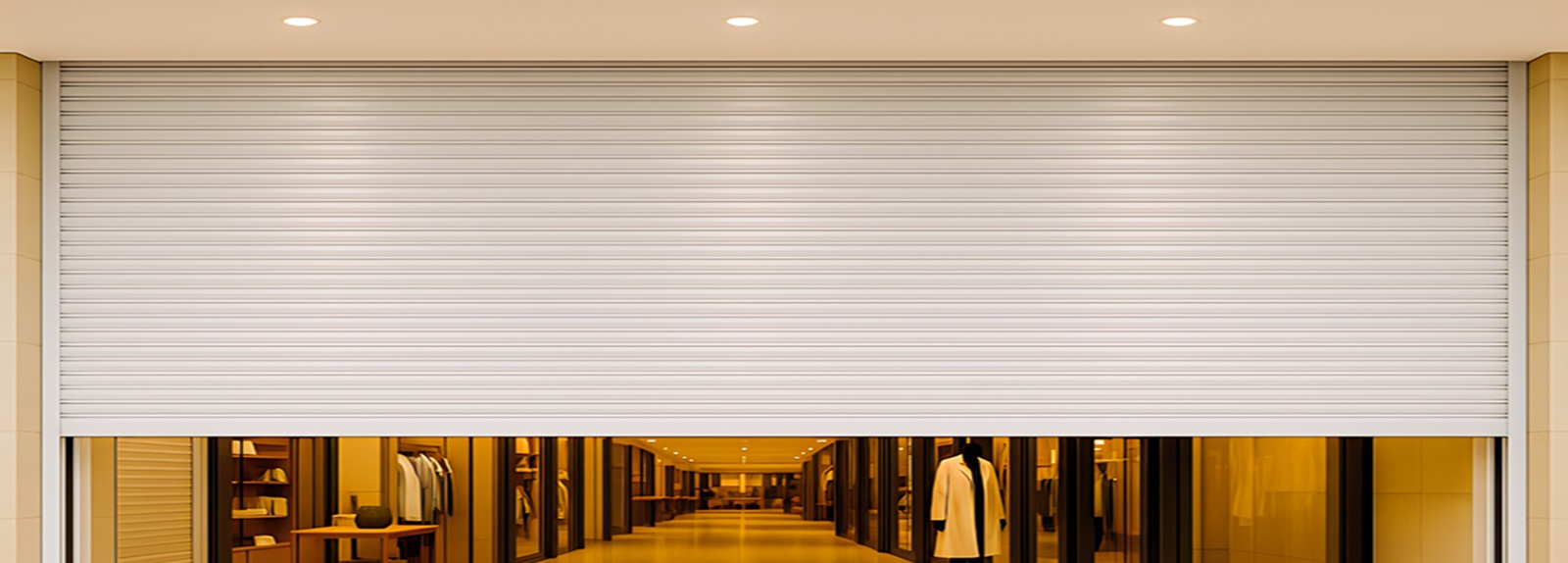

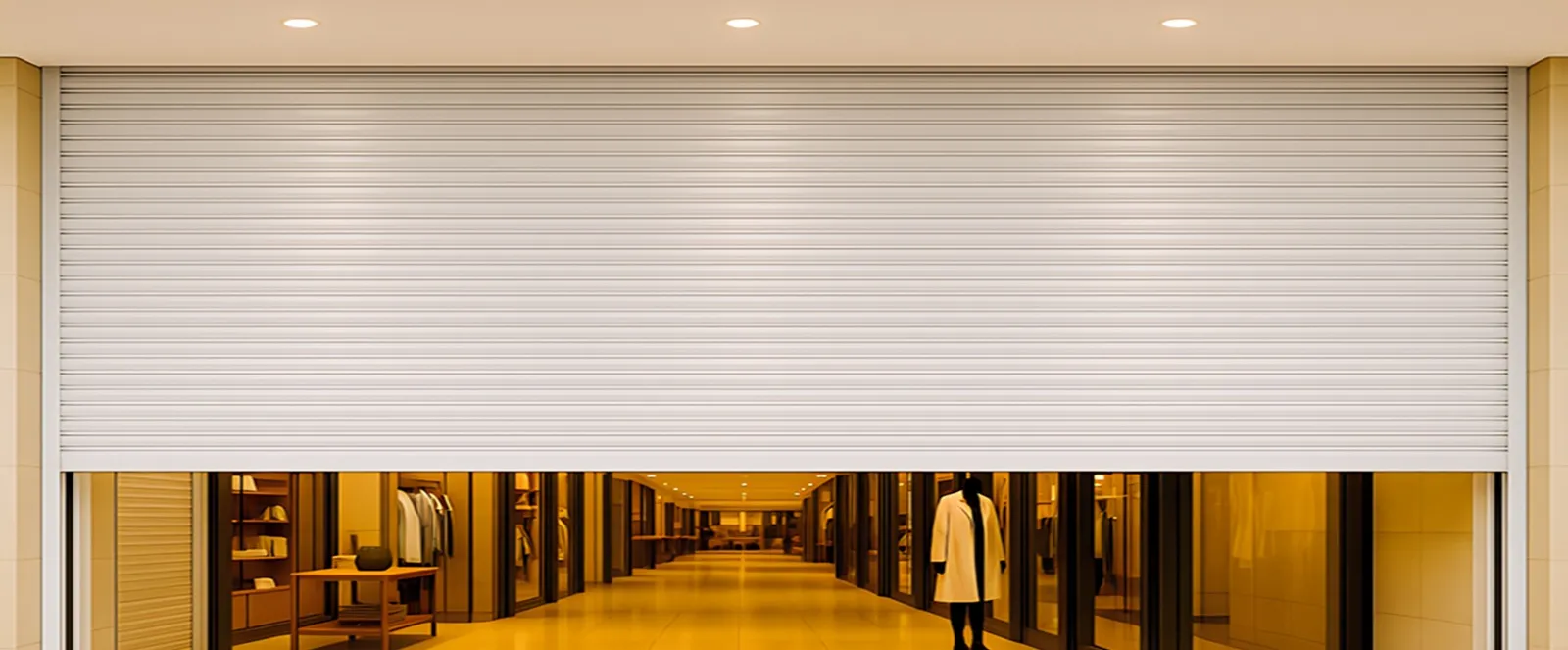

Shopping Mall Fire Door

Inquiry now + Next Product +

Characteristics

SUPERIOR FIRE RESISTANCE

NO WATER PROTECTION NEEDED, UNLIKE TRADITIONAL STEEL SHUTTERS, INORGANIC COMPOSITE SHUTTERS ELIMINATE THE NEED FOR WATER SPRAY SYSTEMS, SAVING WATER AND REDUCING INFRASTRUCTURE COSTS. DUAL-TRACK DUAL-CURTAIN, BEST FOR LARGE MALLS, ATRIUMS, INDUSTRIAL ZONES.

SPACE-SAVING DESIGNS

FOLDABLE LIFT-TYPE VARIANTS (E.G., U-SHAPED, CURVED) FIT IRREGULAR OPENINGS WITHOUT SUPPORT COLUMNS, MAXIMIZING ARCHITECTURAL FLEXIBILITY. WATER-MIST STEEL SHUTTER, BEST FOR HIGH-HUMIDITY AREAS (E.G., PARKING GARAGES), RAPID COOLING; SMOKE SUPPRESSION.

LIGHTWEIGHT & STRUCTURAL EFFICIENCY

LOW WEIGHT (7 KG/M²): REDUCES BUILDING LOAD SIGNIFICANTLY, IDEAL FOR LARGE SPANS (E.G., ATRIUMS, SHOPPING MALLS) WHERE STRUCTURAL LOAD CAPACITY IS LIMITED. LOW-GRADE FABRICS MAY MELT BELOW 1100°C, SPECIFY CERAMIC FIBER CLOTH (≥1100°C RATING) AND HIGH-TEMP STITCHING.

Certification Standard

EN16034: the overarching standard for pedestrian and industrial fire/smoke doors & shutters. it mandates assessment against:

EN 1634-1: fire resistance test for doors, shutters, and operable fabric curtains (integrity, insulation)

EN 1364-2: fire resistance tests for non-loadbearing elements - part 2: ceilings (relevant for shutter boxes/cassettes).

EN 1363-1/2: general fire resistance test methods.

EN 13501-2: classification using test data from above

UL 10B / UL 10C: standard fire tests for door assemblies.

UL 263: standard for fire tests of building construction and materials (similar scope to ASTM 119).

Technical data

FIRE RATING	> or =3–4 HOURS (TESTED TO GB9978/EN 1634)	TYPES, APPLICATIONS & BENEFIT
BACKFACE TEMPERATURE	AVG. > or =380°C; MAX. SINGLE POINT > or = 180°C	① DUAL-TRACK DUAL-CURTAIN
CURTAIN THICKNESS	10–20 MM (MULTI-LAYER: CERAMIC FIBER + FIREPROOF CLOTH)	LARGE MALLS, ATRIUMS, INDUSTRIAL ZONES
OPERATION SPEED	2.5–6.4 M/MIN (ELECTRIC); 4–5 M/MIN (GRAVITY FALL)	AIR-LAYER INSULATION; NO WATER SPRAY
AIR GAP (DUAL CURTAINS)	300 MM (OPTIMIZES THERMAL INSULATION)	② WATER-MIST STEEL SHUTTER
SOUND INSULATION	UP TO 42 DB REDUCTION	HIGH-HUMIDITY AREAS (E.G., PARKING GARAGES)
MOTOR POWER	0.25–1.5 KW (AC/DC OPTIONS)	RAPID COOLING; SMOKE SUPPRESSION
MAX. DIMENSIONS	WIDTH: < or = 60 FT (18.3 M); HEIGHT: < or = 40 FT (12.2 M)	③ FOLDABLE LIFT-TYPE
STRUCTURAL REQUIREMENTS		IRREGULAR OPENINGS (E.G., ESCALATORS, CURVED WALLS)
WALL STRENGTH	MUST SUPPORT 300–500 KG LOADS; CONCRETE/BRICK WALLS RECOMMENDED.	SPACE-SAVING; COLUMN-FREE DESIGN
OPENING TOLERANCE	≤5 MM DEVIATION (PLUMB/LEVEL) FOR SEAMLESS TRACK ALIGNMENT.	④ INSULATED STEEL (FIRESTAR)
APPLICATION	BUILDING PROJECT, COMPANY, HOME, OFFICE, HOTEL, CHURCH, JUST ANYWHERE YOU WANT!	EXTREME CLIMATES (E.G., COLD STORAGE)
PACKAGE	INSIDE: PE PAPER \| OUTSIDE: DOUBLE LAYERS CARTON BOX AND WOODEN PALLETS.	MINERAL WOOL CORE; U-VALUE < or = 0.8 W/M²K
