    Motorized Fire Door with Windows

    In high-traffic office spaces and meeting rooms, fire safety is non-negotiable. Our fire-rated shutter doors provide critical compartmentalization,

    slowing fire spread and ensuring safe evacuation, while blending seamlessly with modern office aesthetics.

    Why Choose Our Fireproof Shutter Doors?

    ✔ 30/60/90-Min Fire Resistance – Tested & certified for compliance

    ✔ Sound Insulation – Reduces noise for distraction-free meetings

    ✔ Sleek & Professional Design – Customizable finishes (wood, steel, glass)

    ✔ Automatic Closing Mechanisms – Ensures doors shut safely during emergencies

    ✔ Smoke Seals & Intumescent Strips – Blocks toxic fumes for added protection

    Perfect for:

    - Corporate offices & coworking spaces

    - Conference rooms & executive suites

    - Server rooms & high-risk areas

    Don’t Compromise on Safety! Upgrade to code-compliant, high-performance fire doors today.

    Inquiry now + Next Product +
    Motorized Fire Door with Windows

    Motorized Fire Door with Windows

    Characteristics

    FOR UNDERGROUND ROW GARAGES (MULTI-UNIT COMPLEXES)

    IDEAL FOR APARTMENT BUILDINGS, CONDOS, AND COMMERCIAL PARKING, OUR FIRE-RATED ROLLING SHUTTERS OFFER COMPARTMENTALIZATION TO PREVENT FIRE SPREAD, PROTECTING MULTIPLE VEHICLES AT ONCE. BUILT WITH HEAVY-DUTY MATERIALS AND AUTOMATED CONTROLS.

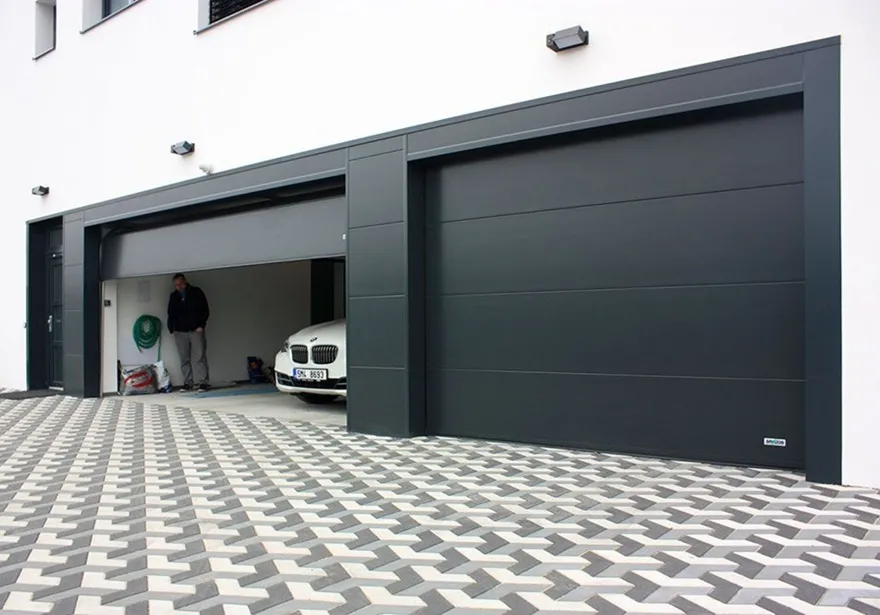

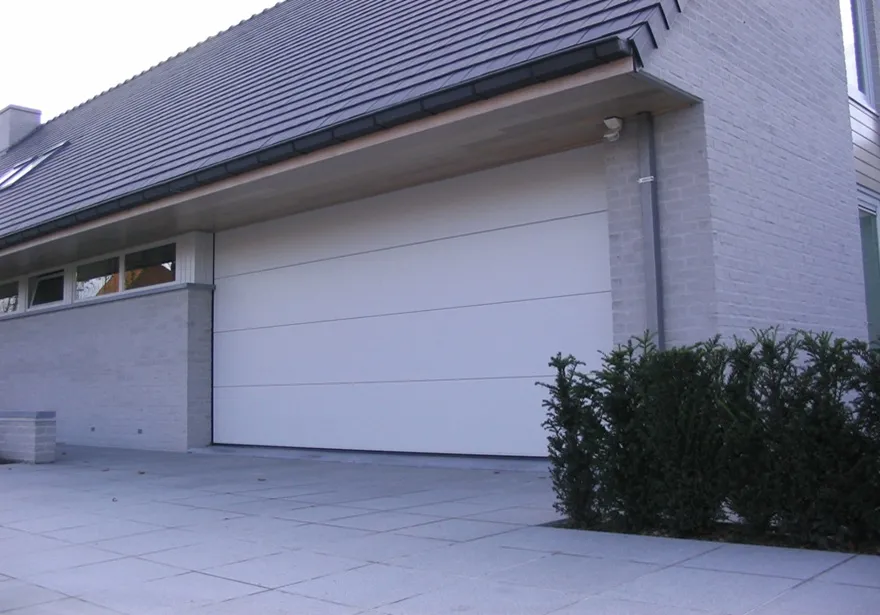

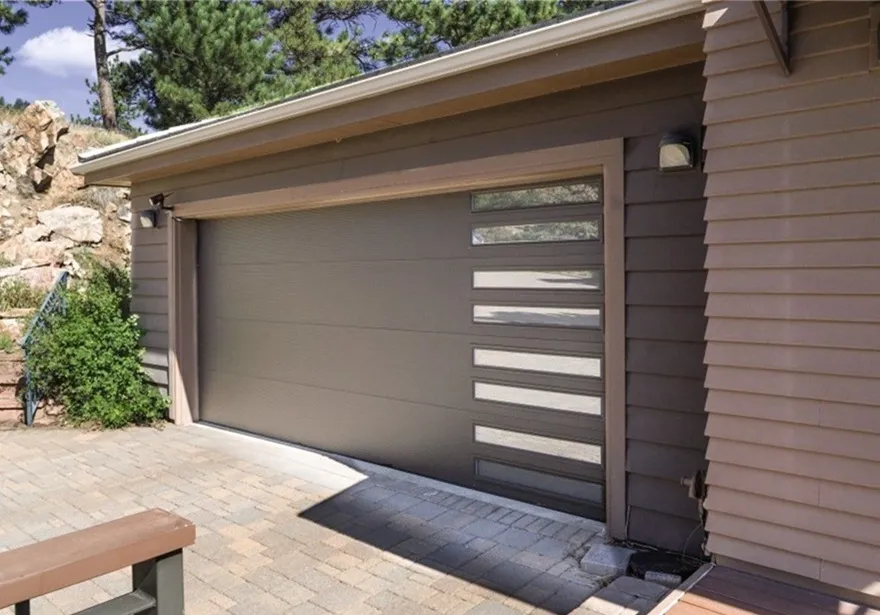

    FOR PRIVATE GARAGES (Ground Level)

    DESIGNED FOR DURABILITY AND STYLE, OUR SHUTTERS PROVIDE ENHANCED SECURITY, FIRE RESISTANCE, AND INSULATION, ENSURING YOUR GARAGE STAYS PROTECTED AGAINST FLAMES, THEFT, AND EXTREME WEATHER. EASY TO OPERATE, LOW MAINTENANCE AND CUSTOMIZABLE TO FIT ANY DESIGN.

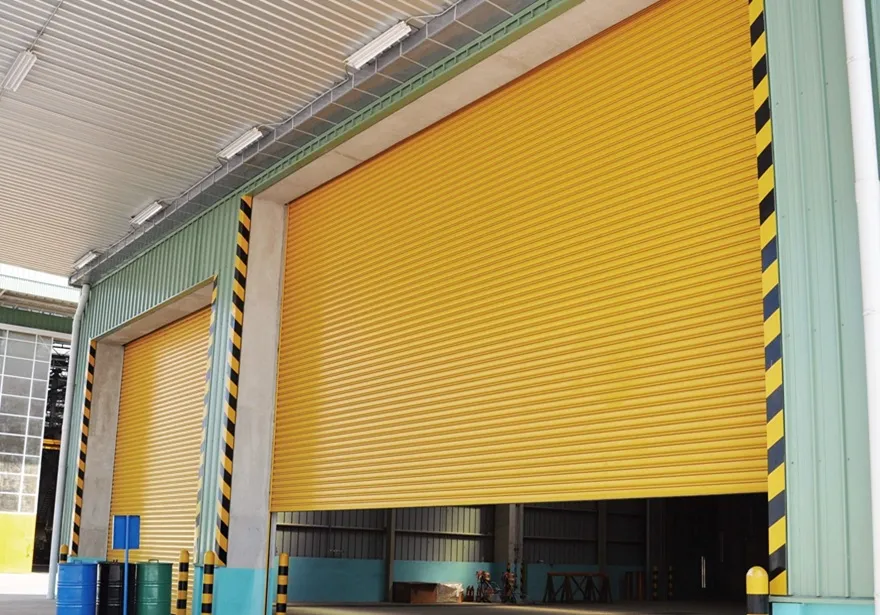

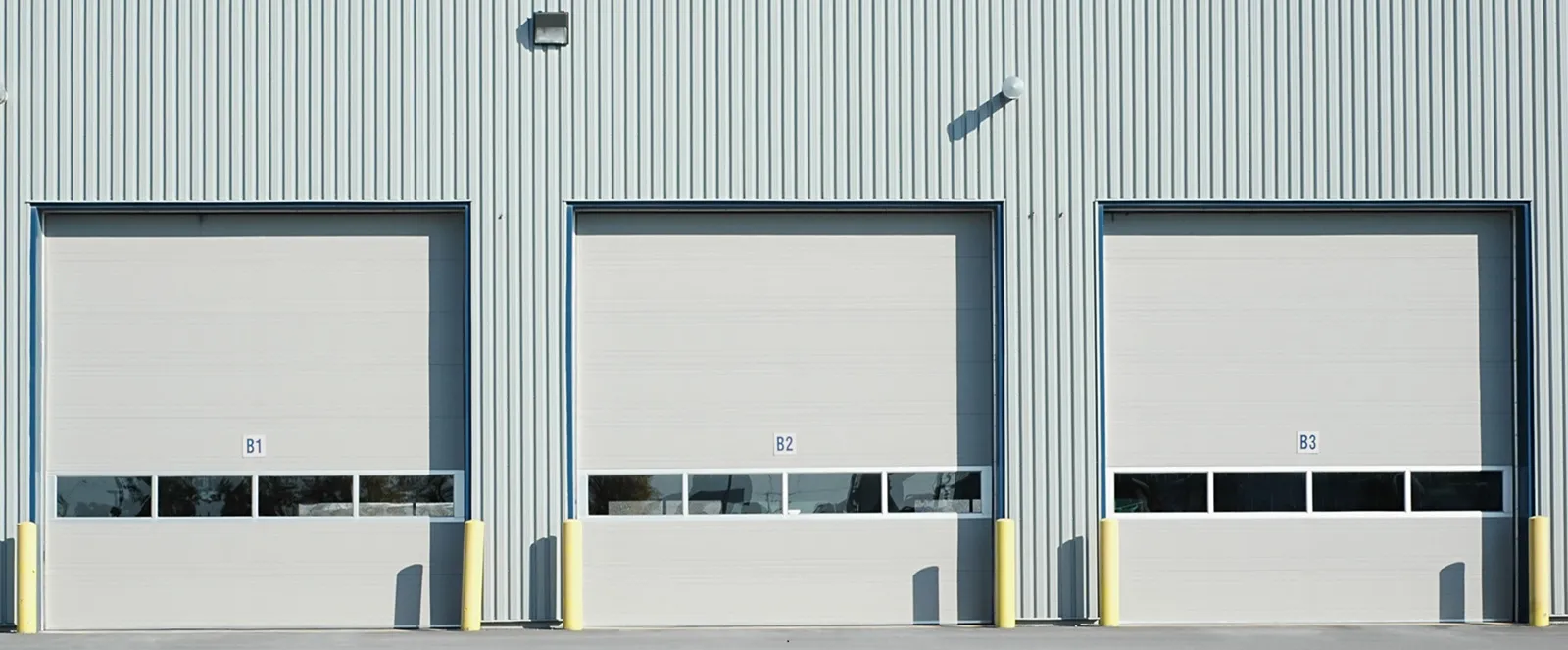

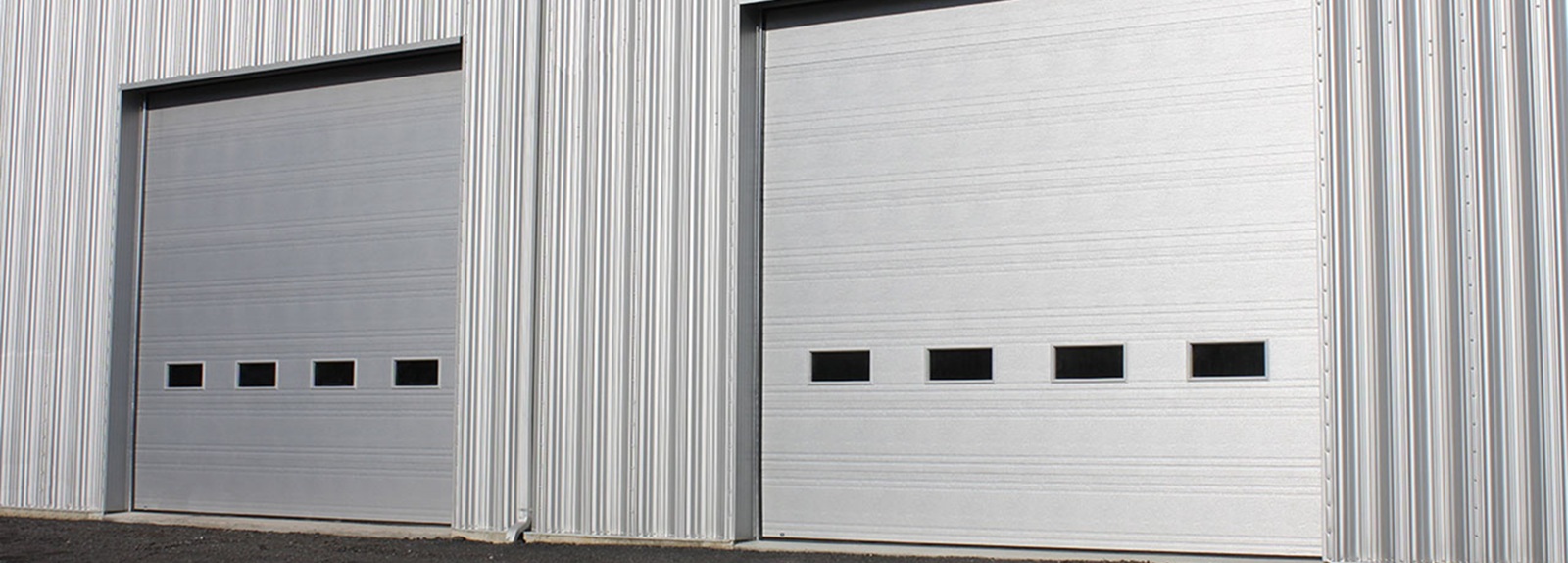

    FOR WAREHOUSES & STORAGE FACILITIES

    MINIMIZE FIRE RISKS AND SECURE HIGH-VALUE INVENTORY WITH INDUSTRIAL-GRADE FIREPROOF SHUTTERS. OUR SOLUTIONS ARE CERTIFIED FOR FIRE RESISTANCE, HEAT INSULATION, AND FORCED-ENTRY PROTECTION, ENSURING BUSINESS CONTINUITY AND ASSET SAFETY.

    Certification Standard

    EN16034: the overarching standard for pedestrian and industrial fire/smoke doors & shutters. it mandates assessment against:

    EN 1634-1: fire resistance test for doors, shutters, and operable fabric curtains (integrity, insulation)

    EN 1364-2: fire resistance tests for non-loadbearing elements - part 2: ceilings (relevant for shutter boxes/cassettes).

    EN 1363-1/2: general fire resistance test methods.

    EN 13501-2: classification using test data from above

    UL 10B / UL 10C: standard fire tests for door assemblies.

    UL 263: standard for fire tests of building construction and materials (similar scope to ASTM 119).

    Technical data

    FIRE   RATING> or =3–4   HOURS (TESTED TO GB9978/EN 1634)
    		TYPES, APPLICATIONS & BENEFIT
     BACKFACE TEMPERATUREAVG.   > or =380°C; MAX. SINGLE POINT > or = 180°C① DUAL-TRACK DUAL-CURTAIN
    CURTAIN THICKNESS10–20   MM (MULTI-LAYER: CERAMIC FIBER + FIREPROOF CLOTH)LARGE   MALLS, ATRIUMS, INDUSTRIAL ZONES
    OPERATION SPEED2.5–6.4   M/MIN (ELECTRIC); 4–5 M/MIN (GRAVITY FALL)AIR-LAYER INSULATION;   NO WATER SPRAY
    AIR GAP (DUAL CURTAINS) 300   MM (OPTIMIZES THERMAL INSULATION)② WATER-MIST STEEL SHUTTER
    SOUND INSULATIONUP   TO 42 DB REDUCTIONHIGH-HUMIDITY   AREAS (E.G., PARKING GARAGES)
    MOTOR POWER0.25–1.5   KW (AC/DC OPTIONS)RAPID COOLING; SMOKE   SUPPRESSION
    MAX. DIMENSIONSWIDTH:   < or = 60 FT (18.3 M); HEIGHT: < or = 40 FT (12.2 M) ③ FOLDABLE LIFT-TYPE
    STRUCTURAL   REQUIREMENTSIRREGULAR OPENINGS   (E.G., ESCALATORS, CURVED WALLS)
    WALL STRENGTHMUST   SUPPORT 300–500 KG LOADS; CONCRETE/BRICK WALLS RECOMMENDED.  SPACE-SAVING;   COLUMN-FREE DESIGN
    OPENING TOLERANCE≤5   MM DEVIATION (PLUMB/LEVEL) FOR SEAMLESS TRACK ALIGNMENT.  ④ INSULATED   STEEL (FIRESTAR)
    APPLICATIONBUILDING   PROJECT, COMPANY, HOME, OFFICE, HOTEL, CHURCH, JUST ANYWHERE YOU WANT!
    		EXTREME   CLIMATES (E.G., COLD STORAGE)
    PACKAGEINSIDE:   PE PAPER | OUTSIDE: DOUBLE LAYERS CARTON BOX AND WOODEN PALLETS.
    		MINERAL   WOOL CORE; U-VALUE < or = 0.8 W/M²K


    Doors Overviews

    No water protection needed:

    unlike traditional steel shutters, inorganic composite shutters eliminate the need for water spray systems, saving water and reducing infrastructure costs.


    Lightweight & structural efficiency

    Low weight (7 kg/m²): reduces building load significantly, ideal for large spans (e.g., atriums, shopping malls) where structural load capacity is limited.

    Space-saving designs: foldable lift-type variants (e.g., u-shaped, curved) fit irregular openings without support columns, maximizing architectural flexibility.

    Intelligent safety integration

    Auto-trigger mechanisms: integrates with smoke/heat detectors and fire alarm systems for immediate descent during emergencies; includes thermal fuse devices for fail-safe closure.

    Smoke sealing: low leakage rates (≤0.06 m³/m²·min) prevent smoke spread, enhancing evacuation safety.

    Durability & low maintenance

    Corrosion resistance: inorganic fabrics resist moisture, chemicals, and rust, extending lifespan beyond 20 years.

    Quiet operation: noise levels <65 db during opening/closing.
